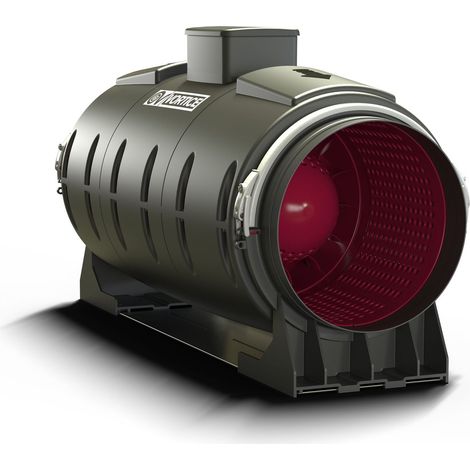

Sound-insulated inline fan Lineo 250 Quiet

Product information

Description

General description

The Sound-insulated inline fan Lineo 250 Quiet is designed for efficient air circulation while minimizing noise levels. Its robust construction and advanced features make it suitable for various applications, ensuring optimal performance and reliability.

Technical specifications

Voltage: 220-240 V ~ 50/60 Hz

Housing colour: black

Housing material: polypropylene

Nominal size: 250 mm

Bearings: ball bearing

Speed levels: 3

Wattage: 95 / 125 / 150 W

Current consumption: 0.42 / 0.55 / 0.65 A

Revolutions per minute: 1640 / 2320 / 2750

Airflow rate: 960 / 1340 / 1550 m³/h

Breakout sound pressure level Lp-3m: 32.2 / 38.5 / 41.9 dB(A)

Breakout sound power level Lw: 52.7 / 59 / 62.4 dB(A)

Total pressure Pmax: 198.1 / 297.2 / 339.3 Pa

Max. temperature of transported air: +50°C

Protection class: IPX5

Insulation class: II

Diameter duct connector: 243 mm

Length: 751.5 mm

Height: 412 mm

Width: 318 mm

Width of mounting bracket: 200 mm

Weight: 13.4 kg

Thermal overload protection

Includes mounting bracket

Mounting position: any position

Fan unit can be removed quickly for cleaning and maintenance

Classification of fire E-d2 according to European Standard EN 13501-1

Features

Brand
VORTICE
Colour
Black
Power
150 W
Power source
Corded
Max. flow rate
1550 m³/h
