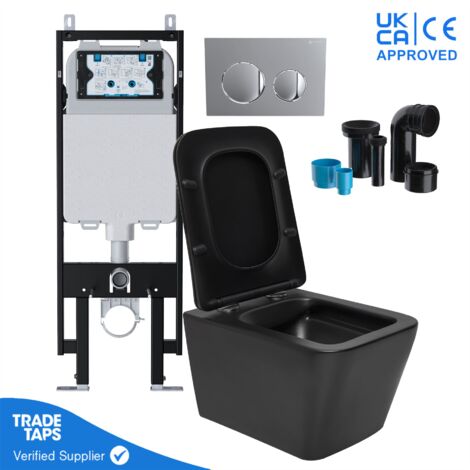

Square Black Wall Hung Toilet Pan with VIVA Slim Concealed Cistern Frame 1.14-1.35m & Chrome flush Plate

Name: Square Black Wall Hung Toilet Pan with VIVA Slim Concealed Cistern Frame 1.14-1.35m & Chrome flush Plate
Brand: GRAVAHAUS
SKU: VIVA#42#SATINF012SREXPBKM-SKYWHF01-ULTRA10
Price: 406 GBP
Availability: InStock

Sold by GravaHaus

Product information

Description

General description

This Square Black Wall Hung Toilet Pan with VIVA Slim Concealed Cistern Frame is designed to enhance modern bathrooms with its sleek and contemporary aesthetic. Crafted from high-quality heavyweight ceramic, it features a luxury matt black finish and a minimalist design with hidden fixations. The toilet comes complete with a matching slim sandwich soft-close seat that prevents slamming and allows for easy cleaning with its quick-release mechanism.

Technical specifications

Toilet Size: (H) 345mm x (W) 360mm x (P) 520mm

Frame Size: (H) 1140mm x (W) 400mm x (D) 75mm

Flush Size: (H) 320mm x (W) 350mm x (D) 140mm

Height adjustable from 1140mm to 1350mm

Suitable for depths up to 150mm

Compatibility and accessories

Includes a complete set with frame, angled connector kit, and flush plate

Comes with air gap fill valve

Plain end WC connector

Angled outlet connector

Soil pipe connector

Flush pipe with flush cone

Drain & flush pipe cap

Installation

Wall mounted installation

All necessary installation fixings are pre-supplied

Quick snap-in fixing bolts for easy setup

Usage

Designed for modern bathrooms to create a space-saving look

Soft-close seat mechanism for quiet operation

Quick-release seat for easy access and cleaning

Other information

10 years warranty on the frame, 2 years warranty on the toilet seat

Features

Brand
GRAVAHAUS
Finishing appearance
Matt
Colour
Black
NF certification
NF
Material
Ceramic
Toilet seat features
Soft close
Compatible with soft-close toilet seat
Yes
Bowl sold separately
Yes
Wash function
No
Shape
Square
Seat height
34.5 cm
Height of the bowl
34.5 cm
Lift height
0.345 m
Width
36 cm
Integrated hand basin
No
Toilet seat material
Plastic
Bowl material
Ceramic
Supplied flush mechanism pre-assembled
Yes
Toilet and Bidet Set
No
Weight
46.6 kg
Pcs per pack
1
Shut-off valve included
Yes
Support frame type
Wall
Type of bowl outlet
Horizontal
Type of toilet
Wall-hung
Type of flush mechanism
Double flush
Macerating toilet
No
ManoMano Reference
ME85953854
MMID
319073681988
Product code
VIVA#42#SATINF012SREXPBKM-SKYWHF01-ULTRA10
EAN
5060996138397

Advice from

Toilet fixing frame buying guide

Wall-hung toilets fit perfectly into contemporary-style bathrooms as you only see the bits you need to clean: the pan, lid and flush button. Beyond these parts, the whole mechanism is hidden behind casing and supported by a toilet frame. Read on for all you need to know about picking the right frame for your toilet!
