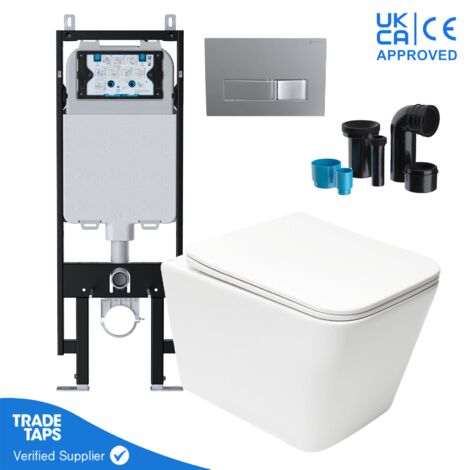

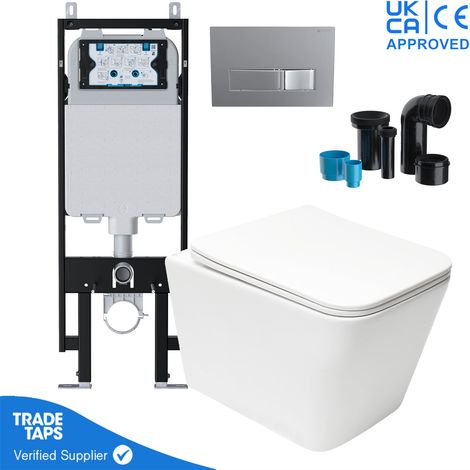

Wall Hung Toilet Pan Round with VIVA Slim Concealed Cistern Frame 1.14-1.35m & Square Chrome Flush Plate

Product out of stock

Product information

Description

General description

This wall hung toilet pan features a contemporary square design with soft chiselled edges and gentle curvature, crafted from high-quality heavyweight ceramic with a luxury gloss white finish. It includes a matching soft-close toilet seat with a quick-release mechanism for easy cleaning and access. The installation is wall-mounted, and all necessary fixings are pre-supplied, ensuring a minimalist aesthetic appeal.

Technical specifications

Toilet Size: (H) 290mm x (W) 360mm x (D) 520mm

Frame Size: (H) 1140mm x (W) 400mm x (D) 75mm

Flush Size: (H) 320mm x (W) 350mm x (D) 140mm

Height adjustable from 1140mm to 1350mm

Suitable for depths up to 150mm

Compatibility and accessories

Includes a slim cistern frame

Comes with an angled outlet connector

Includes a soil pipe connector

Features a flush pipe with flush cone

Includes a drain and flush pipe cap

Quick snap-in fixing bolts

Air gap fill valve

Installation

Wall mounted installation

All necessary installation fixings are pre-supplied

Height adjustable feet for flexibility during installation

Usage

Soft-close seat mechanism prevents slamming

Quick-release seat mechanism allows for easy access and cleaning

Other information

10 years warranty on the frame

2 years warranty on the toilet seat

Features

Brand
GRAVAHAUS
Colour
White
Material
Ceramic
Toilet accessories included
Toilet seat fittings
Toilet seat features
Soft close
Compatible with soft-close toilet seat
Yes
Bowl sold separately
Yes
Wash function
No
Shape
Square
Seat height
29 cm
Height of the bowl
29 cm
Lift height
0.29 m
Total height
29 cm
Width
36 cm
Integrated hand basin
No
Toilet seat material
Plastic
Bowl material
Ceramic
Supplied flush mechanism pre-assembled
Yes
Toilet and Bidet Set
No
Weight
46.6 kg
Pcs per pack
1
Shut-off valve included
Yes
Support frame type
Wall
Type of bowl outlet
Complete
Type of toilet
Wall-hung
Macerating toilet
No
ManoMano Reference
ME85953841
MMID
579084776122
Product code
VIVA#39#SATINF012SREXP-SKYWHF01-ULTRA20
EAN
5060996138229

Advice from

Toilet fixing frame buying guide

Wall-hung toilets fit perfectly into contemporary-style bathrooms as you only see the bits you need to clean: the pan, lid and flush button. Beyond these parts, the whole mechanism is hidden behind casing and supported by a toilet frame. Read on for all you need to know about picking the right frame for your toilet!
