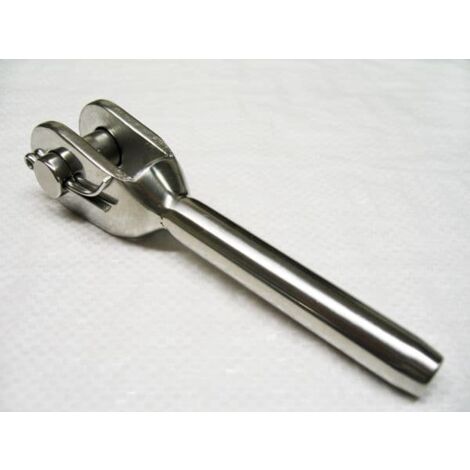

Stainless Steel Swage Fork Terminal 10MM (Jaw Wire Rope Cable Rigging)

Name: Stainless Steel Swage Fork Terminal 10MM (Jaw Wire Rope Cable Rigging)
Brand: SECUREFIX DIRECT
SKU: SFSSTF10
Price: 13.15 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Our Stainless Steel Swaged Fork Terminals are designed to effectively terminate wire rope, making them ideal for use in the marine and architectural industries. Manufactured from 316 grade stainless steel, these terminals offer excellent rust resistance and an aesthetically pleasing finish, suitable for public spaces.

Technical specifications

Wire Diameter: 10MM

Metal: 316 Grade Stainless Steel

Product Codes and Dimensions:

Code SFSSTF03: A=9MM, B=3.3MM, C=6MM, D=6MM, E=68MM, F=40MM

Code SFSSTF04: A=11.2MM, B=4.3MM, C=7.6MM, D=7.8MM, E=77.3MM, F=41MM

Code SFSSTF05: A=11.8MM, B=5.3MM, C=9MM, D=8.9MM, E=88MM, F=60MM

Code SFSSTF06: A=13MM, B=6.4MM, C=13MM, D=9MM, E=104MM, F=65MM

Code SFSSTF07: A=15.5MM, B=7.6MM, C=14MM, D=12.5MM, E=117MM, F=72MM

Code SFSSTF08: A=17MM, B=8.3MM, C=16MM, D=16MM, E=146MM, F=87MM

Code SFSSTF10: A=20MM, B=10.6MM, C=18MM, D=19MM, E=149MM, F=91MM

Code SFSSTF12: A=22MM, B=12.5MM, C=20MM, D=19MM, E=195MM, F=107MM

Other information

The clevis pin on these terminals can be secured using either a split pin or a cotter ring.

Features

Brand
SECUREFIX DIRECT
Material
Stainless steel
Colour
Grey
Maximum load
10 kg
Pcs per pack
1
