Thermex IF 30 Flat Smart

Thermex IF 30 Flat Smart Boiler

Description:
The Thermex IF 30 SMART boiler combines advanced features, energy efficiency, and flexible installation options. Here are the specifications and features of this boiler:

Design and Installation:

• Installation: Suitable for both vertical and horizontal mounting, offering flexibility for integration in various locations.

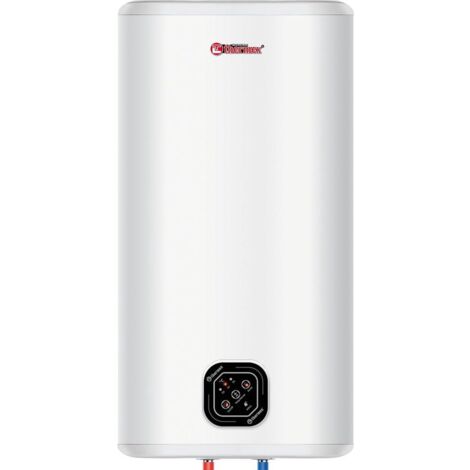

• Design: The flat design allows the boiler to integrate perfectly in any conceivable space.

Energy Efficiency:

• Energy Label: B, thanks to excellent insulation and the smart "SMART" mode that maximises energy savings by maintaining water at a minimum temperature when hot water is not needed.

• SMART Function: Monitors hot water usage and prepares for the next cycle of water usage, providing comfort while saving energy.

Ease of Use and Safety:

• Display: Equipped with a user-friendly display with self-diagnosis and frost protection for added convenience and safety.

• Power Loss Safety: Automatically switches to standby mode during power outages and requires manual reactivation after power is restored.

Construction and Materials:

• Tanks: Enamelled steel tanks with BIO-glasslined coating provide maximum protection to the inner tank without environmental impact.

• Safety Features: Includes a 3-in-1 safety valve (drain valve, check valve, and pressure relief valve in one) for optimal safety.

Technical Specifications:

• Brand: Thermex

• Type: IF 30 SMART

• Net Capacity: 25 litres

• Installation: Vertical mounting (dimensions: 587 x 453 x 263 mm) and horizontal mounting (dimensions: 453 x 587 x 263 mm), with downward and leftward branch connections respectively.

• Water Pressure: Minimum 0.05 MPa, Maximum 0.7 MPa

• Operating Pressure: Maximum 0.8 MPa

• Power Rating: 2000 Watts, 230 Volts, 10 Amps

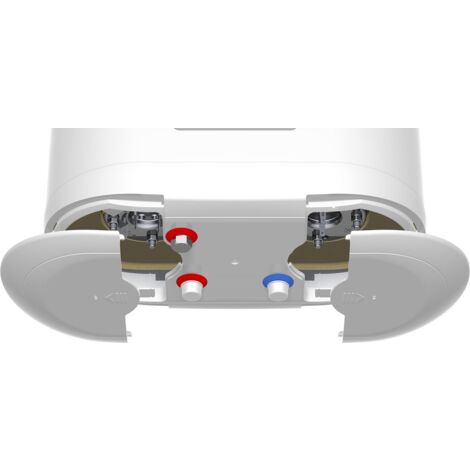

• Water Connection: ½ inch

• Empty Weight: 13.5 kg

• Heating Time at Incoming Temperature of 45 degrees: 39 minutes

• Maximum Temperature: 65 degrees Celsius

• Warranty: 2 years full warranty, 5 years on the tanks.

Included in the Package:

• Boiler including connection cable

• Manual

• Set of wall anchors

• Inlet combination: 3-in-1 safety valve (drain valve, check valve, and pressure relief valve in one).
