Description

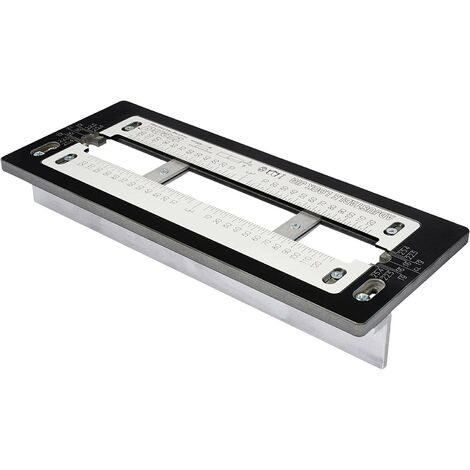

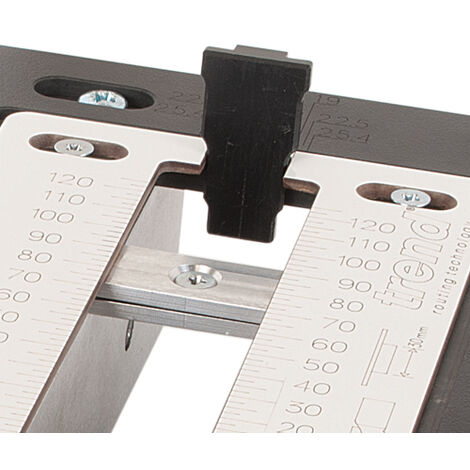

Trade jig with adjustable sliding inserts to allow faceplate and mortise recesses for popular size door locks to be routed with a plunge router.
Fully adjustable for lock face plate length up to 250mm.

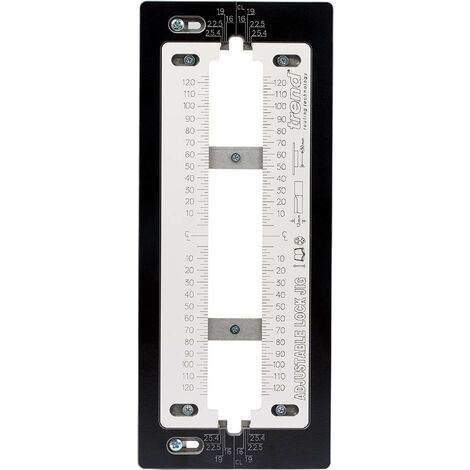

Quick and easy to set up using engraved lines for lock size and door sizes.
Fast, clean & accurate results on doors even in hardwood.

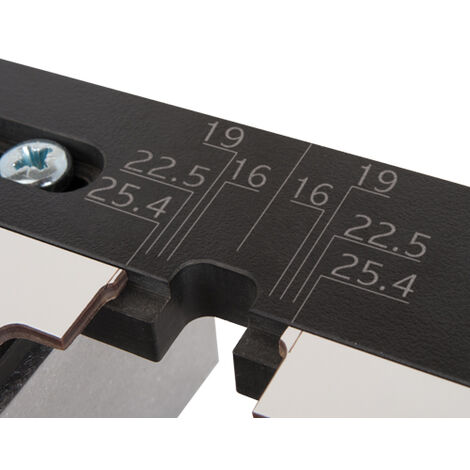

Engraved for 16mm and 19mm lock width and 22.5mm and 25.4mm face plate widths.
Measuring required for other lock widths.
Engraved on underside to allow set up for 35mm, 40mm, 44mm and 54mm door widths.
Deeper mortises can be achieved with a suitable size of auger bit.
Plastic laminate body with aluminium clamping bar, with clamping range 30mm to 80mm.
Door thickness min. 30 mm
Door thickness max. 80 mm
Faceplate length min. (OL) 30 mm
Faceplate length max. (OL) 250 mm
Face plate width engraved size (D)
Width 22.5 mm
Width 25.4 mm (1 inch)
Fully adjustable for lock face plate length up to 250mm.
Quick and easy to set up using engraved lines for lock size and door sizes.
Fast, clean & accurate results on doors even in hardwood.
Engraved for 16mm and 19mm lock width and 22.5mm and 25.4mm face plate widths.
Measuring required for other lock widths.
Engraved on underside to allow set up for 35mm, 40mm, 44mm and 54mm door widths.
Deeper mortises can be achieved with a suitable size of auger bit.
Plastic laminate body with aluminium clamping bar, with clamping range 30mm to 80mm.
Door thickness min. 30 mm
Door thickness max. 80 mm
Faceplate length min. (OL) 30 mm
Faceplate length max. (OL) 250 mm
Face plate width engraved size (D)
Width 22.5 mm
Width 25.4 mm (1 inch)
Features
- BrandTREND
- ColourBlack
- Guide bar length25 cm
- MaterialZinc
- Weight1000 g
- Mitre saw accessory typeLocking screws
- Table saw accessory typeStop
- ManoMano ReferenceME1771730
- MMID428340913053
- Product codeLOCK/JIG/B
- EAN5027654560716
