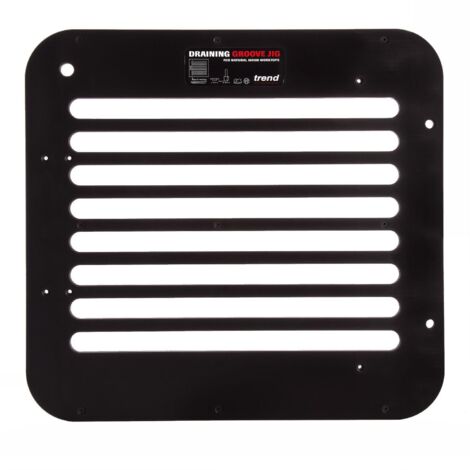

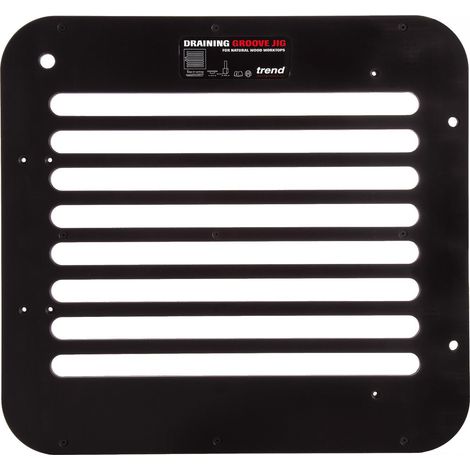

Draining Groove Jig DG/JIG

The Trend Draining Groove Jig is perfect for routing draining grooves in solid timber for Belfast type sinks. Made from 12mm hardwearing CNC machined phenolic. It provides a 0.5° fall with grooves at 50mm pitch and 455mm long. With sight marks for lining up and three removable sloping runners for support. There is also a cutter diameter check hole and fixing holes for user made stops for repetitious work.

CNC-Machined Compact Grade HPL provides precision, strength and durability.
3 Support Runners to minimise jig deflection and maximise router support.
8 Drainer Grooves at 50mm pitch and 455mm long.
Etched Sight Lines for quick setup.
In-Built 0.5° Fall to minimize setup time and remove the need for spacers.
Edge Guide Fixing Holes to accommodate user-made edge guides for repetitive installations.
Requires: ½” router (min.1300W), cutter and 2 x F-Clamps.
Cutter options: C056AX1/2TC (9.5mm radius), C053CX1/2TC (6.0mm radius), C306X1/2TC (flat bottom).

Specification

Fall: 0.5°.
Groove Pitch: 50mm.
Groove Length: 455mm.
Slat Width: 19.8mm.
