TREND Hinge Jig Skeleton Two Part In case

Name: TREND Hinge Jig Skeleton Two Part In case
Brand: TREND
SKU: H/JIG/C
Price: 254.95 GBP
Availability: InStock
Rating: 2 (1 reviews)

Sold by BuyaParcel and 1 other seller

Product information

Description

General description

The Trend H/JIG/C Hinge Jig Skeleton is a two-part adjustable portable template set designed for recessing hinges in wooden doors and frames using a router. It is easy to use with minimal setup time, allowing for accurate and quick completion of jobs. This jig is ideal for on-site use and in joinery shops, enhancing productivity with excellent results. It features fully adjustable apertures suitable for fire door requirements and renovation work, making it perfect for fitting a new door into an old frame.

Technical specifications

Hinge sizes possible: Minimum length: 67 mm (2.5/8 in), Maximum length: 127 mm (5 in)

Minimum width: 12.7 mm (1/2 in), Maximum width: 35 mm (1.3/8 in)

Door sizes possible: Minimum height: 1956 mm (6 ft 5 in), Maximum height: 2100 mm (6 ft 10 in)

Minimum thickness: 16 mm (5/8 in), Maximum thickness: 51 mm (2 in)

Weight: 2.9 kg

Overall length: 1956 mm

Preset hinge sizes: 20 mm, 25 mm, and 30 mm

Compatibility and accessories

Suitable for timber-based doors and square butt hinges

Use with a light-duty plunge router with a 1/4 inch collet

Long reach router cutter required: 12 mm diameter with 70 mm overall length

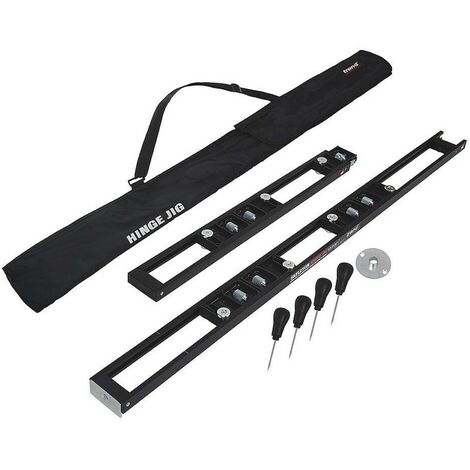

Standard equipment includes: 3 x hinge sliding aperture block assemblies, 4 x bradawls (short blade), 1 x 16 mm guide bush, 1 x carry case

Installation

No need for conventional marking out; the hinge serves as the pattern

Quick and simple setup

Clean and accurate recesses achieved every time

Usage

Used on-site and in joinery shops

Increases productivity with excellent results

Ideal for fitting new doors into old frames

Features

Brand
TREND
Warranty
1 year(s)
Colour
Black
Height
11.3 cm
Width
145 cm

Customer reviews

2,0

/ 1 Reviews

Reviews verified by ManoMano

GGrzegorz

Pro Customer

Published on 10/06/2023, United Kingdom

its not practical, trying to secure it to the doors and it keep moving/ wobbling even with brats. when securing for hinges the frame of this item is splitting so the cut is not accurate and if you don't secure it properly then the whole think move and its even worst,.... so far not impress at all
