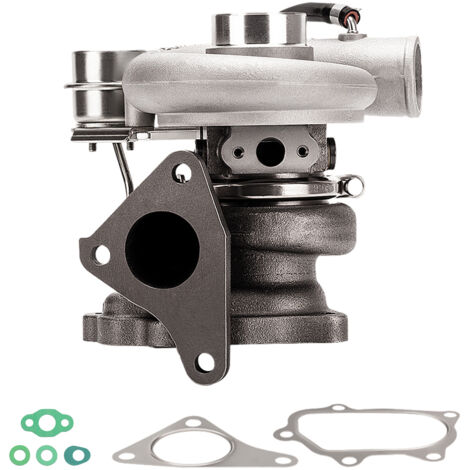

Turbocharger For Subaru Impreza WRX STI TD05 20g EJ20 EJ25 Water Cooling turbine

Name: Turbocharger For Subaru Impreza WRX STI TD05 20g EJ20 EJ25 Water Cooling turbine
Brand: MAXPEEDINGRODS
SKU: 5L2RFM
Price: 166.99 GBP
Availability: InStock

Sold by maXpeedingrods GB

Product information

Description

Application

TD05 20G Upgraded Turbo For Subaru IMPREZA WRX / STI EJ20 EJ25 engine 2002 - 2006

*Notice: All for WRX Wagon engines and automatic sedan engines came with a TD04,all for manual WRX sedans including STI versions had a TD05 model. If your original turbo is TD04 model, some modification(connections, bolts, fixed screws etc.) is required.

Specification

Exhaust Outlet Flange: 5-Bolt Flange
Exhaust Intlet Flange: 3-Bolts Flange
Turbine Side:
Turbine Trim: 76.4
Turbine Housing: 7cm²
Turbine Inducer Diameter:56mm
Turbine Exducer Diameter: 48.96mm
Compressor Side:
Compressor Trim: 59.8
Compressor Inducer Diameter: 52.6mm
Compressor Exducer Diameter:67.9mm
Compressor Housing Inlet OD: 57.8mm

Oil Inlet: M10*1.5
Oil Outlet: M15 & 2*M6H
Water In/Out: M14*1.5
Turbine housing: 7cm²
Compressor housing inlet OD: 57.8mm,ID:53.62mm
Compressor housing outlet OD: 51.2mm,ID:41.2mm

Wastegate: With Wastegate

Bearing: Wet Float/Journal Bearing
Cooling Type: Water + Oil cooled
Thrust Bearing: 270 degree
Hosepower: Up to 420 HP
Turbo Type: Individual
Condition: Brand New
Package Size:30x 28x 24 cm
Package Weight: 7650g

Features:

* Product Material
1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance

* Product
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100 Percent balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Notice

* Please confirm your original fitment before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

Features

Brand
MAXPEEDINGRODS
Length
30 cm
Width
28 cm
Material
Aluminium
Warranty
2 year(s)
