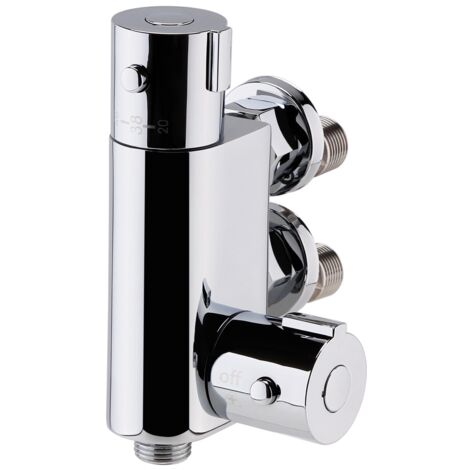

Nuie Chrome Vertical Thermostatic Bar Valve with Bottom Outlet - VBS023

Name: Nuie Chrome Vertical Thermostatic Bar Valve with Bottom Outlet - VBS023
Brand: NUIE
SKU: VBS023
Price: 67.95 GBP
Availability: InStock
Rating: 4 (1 reviews)

Sold by Heat & Plumb and 1 other seller

Product information

Description

General description

Nuie is dedicated to innovative bathroom design, and the Vertical Thermostatic Bar Bottom Outlet Shower Valve exemplifies this commitment. Its upright design is both unconventional and striking, making it a perfect addition to any modern British home. This shower valve is compatible with a wide range of water pressures, from 0.1 bar to 4 bar, and is easy to install, offering great value without the designer price tag.

Technical specifications

Valve Type: Thermostatic Shower Valve

Position: Bar

Diverter: No

Valve Controls: 2

Handle Type: Round

Mounting Type: Wall

Inlet Connection Size: 15mm (1/2 BSP)

Height: 45mm

Width: 90mm

Depth: 185mm

Material: Brass/ABS

Finish: Chrome

Minimum Pressure: 0.2 Bar

Maximum Pressure: 3.0 Bar

Weight: 1.35 kg

Flow Rate @ 0.5 Bar: 7.5 l/min

Flow Rate @ 1.0 Bar: 11.1 l/min

Flow Rate @ 2.0 Bar: 16.2 l/min

Flow Rate @ 3.0 Bar: 20.2 l/min

EAN Barcode: 5055275830659

Manufacturer Part Number: VBS023

Installation

During installation, extra care must be taken to avoid damaging the fittings. The shower can be fitted either vertically or horizontally, and it features a fully reversible cartridge.

Usage

This shower valve supplies water to one outlet and can be used over a bath or installed in a shower cubicle to replace an existing shower. It features a thermostatically controlled design for accurate flow control and full thermal protection to prevent scalding.

Other information

The product comes with a 5 Year Guarantee against faulty workmanship or materials (excluding serviceable parts), provided it has been installed, cared for, and used according to the manufacturer's instructions.

Features

Brand
NUIE
Colour
Grey
Material
Brass
Max. flow rate
20.2 l/min
Intended use of the tap
Shower
Shape
Rounded
Tap activation mechanism
Mechanical
Number of outlets
1
Weight
1.4 kg
Operating pressure
3 bar
Pressure
3 bar
Type of installation method
For mounting
Tap type
Single-lever mixer
ManoMano Reference
ME3048826
MMID
222363022472
Product code
VBS023
EAN
5055275830659

Customer reviews

4,0

/ 1 Reviews

Reviews verified by ManoMano

MMartin

Published on 23/06/2023, United Kingdom

This product was purchased to replace a similar vertical bar shower that has been installed on a narrow boat. I have not yet installed this one as some adjustments will be needed to make the fit possible.
