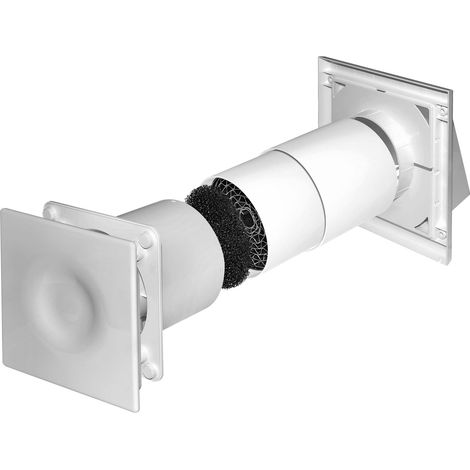

Ventilation system HRV100P with remote

Dimensions and technical details

• 220-240 V ~ 50 Hz
• Single room ventilation system for heat recovery
• Housing colour: white
• Nominal size of duct: 100 mm
• Motor wattage: 1.5 / 2 W
• Airflow rate: 35 / 50 m³/h
• Sound pressure level Lp-3m: 32 / 36 dB(A)
• Permissible temperature range of air: -20°C to +40°C
• Protection code: IPX4 splashing water protection
• Protection class: II
• Weight: 1.5 kg
• Front panel: 160 x 160 x 25 mm
• Outer hood: 190 x 190 x 86 mm
• Telescopic tube: Ø 103 mm x 335 - 540 mm
• Includes filter
• Includes remote control: 2 fan speeds / off
• Heat recovery mode: two cycles alternate automatically every 60 seconds

1. Cycle I: Warm air is extracted from the room. The extracted air warms and dampens the heat storage vessel.
2. Cycle II: Fresh air flows through the heat accumulator, absorbing the stored heat and humidity until reaching room temperature.
