General description
The Mophorn 150mm Vertical & Horizontal Rotary Table is an essential accessory for milling machines, designed for precise work positioning in various metalworking tasks. This rotary table allows for accurate drilling and cutting at fixed intervals around a central axis, making it invaluable for achieving precise results in your projects.
Technical specifications
- Basic Dimension Horizontal: 180 × 170 mm (7 × 6.7")
- Basic Dimension Vertical: 205 × 80 mm (8 × 3.15")
- Height: 80 mm (3.15")
- Weight Without Packaging: 11.1 kg (24.47 lb)
- Worktable with Scale: 360°
- Horizontal Load Capacity: 40 kg (88.18 lb)
- Vertical Load Capacity: 20 kg (44.09 lb)
- MK: 2
- Clamping Table Diameter: 150 mm (5.9")
- Number of Grooves: 4
- Width of Grooves: 11 mm (0.43")
- Circular Accuracy: 0.04 mm
- Parallelism of the Mounting Surface: 0.04 mm
- Parts Accuracy: 45"
- Worm Gear Transmission Ratio: 90/1
Included Accessories

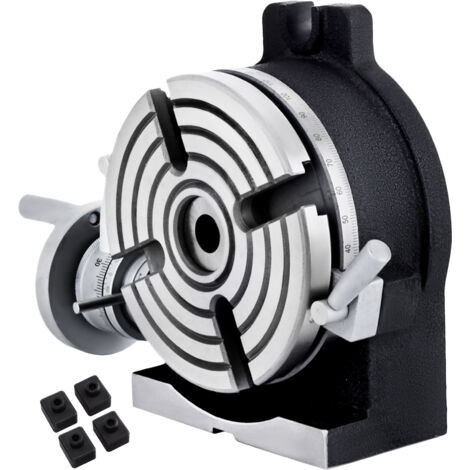

The set includes four locating blocks, with a key guide block for quick and precise center alignment.
User-Friendly Adjustments
Adjusting the rotary table is straightforward; simply turn the handle to the desired position using the precision scale marked on the dial for easy and accurate settings.
Durable HT200 Casting
Crafted from HT200 casting, this table offers excellent shock absorption, heat resistance, and high-strength performance, ensuring reliable and efficient operation.
Versatile Mounting Options
This rotary table can be configured for vertical or horizontal operation. Mount it flat for vertical axis rotation or place it on its side (or on a 90° angle plate) for horizontal axis rotation. A tail stock can also be used for holding workpieces between centers in this configuration.
