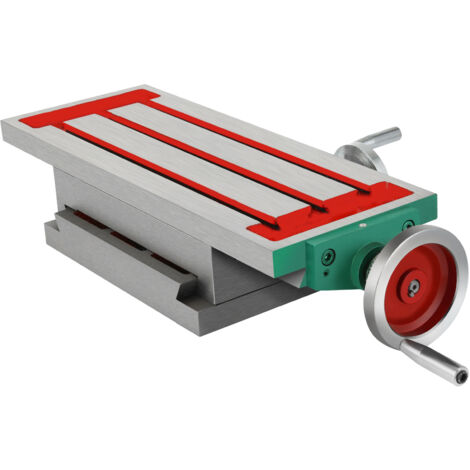

VEVOR Milling Table 17.7×6.7Inch Compound Slide Milling Table 30KG Multifunction Worktable Cross Milling Machine Compound 2 Axis 4 Ways for All Drill Stands Bench Drilling Milling Machine

£168.99
Product out of stock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Product information

Description

6.7 in / 170 mm Milling Machine Worktable

Large Worktable & Flexible Movement & High Precision

The two-axis workbench surface has three T-slots and provides dual-axis (lateral and cross) positioning via two handwheels for precise adjustments. Perfect for drilling grinding and milling operations

  • Premium Quality Structure
  • Highly Polishing & Stiffness
  • Adjustment in XY Direction
  • Tightness Adjustment


Key Features

  • Multiple Application: This milling working cross table machine is great for mounting on drilling machines for precise positioning. It can be used for most types of milling and drilling, ideal for all drill stands, drilling, and milling machines. Table Size: 23 x 13 in / 58 x 33 cm
  • Premium Quality Structure: Built by heavy-duty cast iron material, which is anti-corrosion and rust resistance, angle milling table can withstand the tough environment and designed for long service time.
  • Highly Polishing & Stiffness: The compound slide table, with great hardness and stiffness, is high ground and not easy deformation. Three precise T-slots can meet different force requirements.
  • 2 Axis 4 Ways Move: Handles with trapezoidal thread spindles is easy to adjust the directions. X-axis travel: 8.3 in / 210 mm, Y-axis travel: 4.3 in / 110 mm. With a precise scale on it, you can adjust the optimal working position as you need.
  • Tightness Adjustment: Equipped with several quality bolts and nuts, you can easily adjust the tightness of this cross slide table. Convenient for your use.

     

Heavy-duty Cast Iron

The cross table is made of quality cast iron, which is anti-corrosion and rust resistance, more durable and ensures long service time.

  

T Groove Fixing Design

The compound table, with great hardness and stiffness, is high ground and not easy deformation. Three T-slots design can meet different force requirements.

  

2 Axis Movement

X-axis travel: 210 mm, Y-axis travel: 110 mm. You can adjust the optimal working position as you need.

     

Adjustable Handle

A metal handle with good texture is easy to adjust the directions. With a clear scale on it, it will be more accurate when in use.

  

Quality Bolts & Nuts

The drill press table will be more convenient to adjust the tightness of the worktable with a number of bolts and nuts.

  

Wide Application

This milling working table can be used for most types of milling, drilling, and staging, ideal for all drill stands, drilling, and milling machines.

Specification

  • Worktable Length: 17.7 in / 450 mm
  • Worktable Width: 6.7 in / 170 mm
  • Transverse Travel(X-Route): 8.3 in / 210 mm
  • Longitudinal Travel(Y-Route): 4.3 in / 110 mm
  • Mounting Hole Size (Transverse): 6.2 in / 15.7 cm
  • Mounting Hole Size (Longitudinal): 5.3 in / 13.5 cm
  • Chassis Size: 10 x 9 in / 26 x 23 cm
  • Overall Height: 3.9 in / 100 mm
  • Net Weight: 66 lbs / 30 kg
  • Item Dimensions(L x W x H) : 23 x 13 x 5 in / 58 x 33 x 12.7 cm
  

Package Content

  • 1 x Milling Support Table Worktable
  

Features

  • Brand
    VEVOR
  • Material
    Cast iron
  • ManoMano Reference
    ME61242502
  • MMID
    728538187004
  • Product code
    170GZTM0000000001V0
  • EAN
    0197988017035

Customer reviews

Customer photos
Aalasdair
Published on 04/02/2023, France

Very good generally, Iportant! The lateral sight lacks 60mm in length so 60mm of crosspiece movement is lost, PLUS no stop, the sight is dislocated and it is difficult to get back to full work. So table to repair and work piece to reposition, not great.

2 people found this helpful
MManoMano Customer
Published on 10/07/2024, France

There is no secret. We cannot expect from a table at 150 Euros the quality of a table at 2000 Euros. The game catch-up pieces are common pieces of raw plate, not even polished, with traces of rust. May be correct for DIY after complete disassembly and a little work to try to improve it but for machining it is better to look for better quality.

2 people found this helpful
BBernard
Published on 25/01/2023, France

The product seems to be of good value for money even if the deadline for requesting an opinion does not allow me to have really tested it! It seems robust and very rustic (which often goes hand in hand). Requires a check and adjustment of movement screw* and slide clearances before commissioning, and re-tapping of the handle screws. Too bad that the pin wrench to adjust the play of the stops is not provided. *these screws are directly exposed to shavings and other projections: a protective cover seems essential to me that I will have to make!

5 people found this helpful
FFrederic
Published on 26/09/2023, France

Average finish with play in the cranks, it's a shame not to have the adjustment keys supplied with it

YYves
Published on 10/05/2026, France

The finish is rather basic; the shafts creak in their housings, the bearings are simple pressed cages, the joysticks have significant axial play, and the wheel markings are inaccurate, but the table movements are still acceptable. Not recommended for precise metalworking, but suitable for milling wood with more than sufficient precision for woodworking.

JJean-paul
Published on 04/03/2026, France

Good product for DIY projects. Not for a professional.
