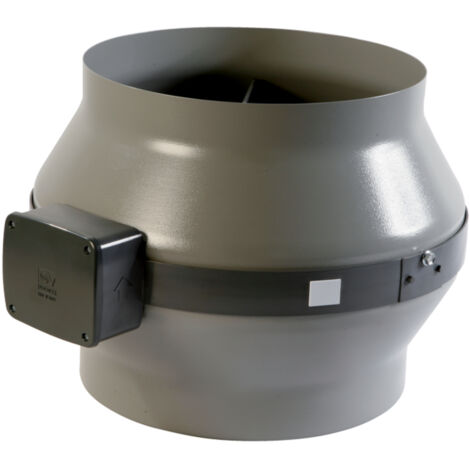

Centrifugal Inline Fan CA MD E 315

Sold by creoven

You may also like

Compare with similar items

Often purchased together

Product information

Description

General description

The Centrifugal Inline Fan CA MD E 315 is designed for efficient air circulation in various applications. It features a robust construction with a hammered grey finish, making it suitable for both residential and commercial use.

Technical specifications

  • Voltage: 220-240 V ~ 50 Hz
  • Nominal width: 315 mm
  • Speeds: 3
  • Motor wattage: 50 / 82 / 120 W
  • Current consumption: 0.47 / 0.54 / 0.53 A
  • Revolutions per minute: 1510 / 2150 / 2630
  • Airflow rate: 570 / 830 / 1015 m3/h
  • Total pressure Pmax: 353.2 / 497.3 / 544.9 Pa
  • Max. sound pressure level Lp-3m: 52.3 dB(A)
  • Max. temperature for continuous operation: 50°C
  • Protection code: IP44
  • Insulation class: II
  • Diameter duct connection: 312 mm
  • Diameter without terminal box: 406 mm
  • Diameter with terminal box: 488 mm
  • Total depth: 306 mm
  • Weight: 7 kg
  • Motor type: Ball-bearing external rotor motor
  • Features

    • Brand
      VORTICE
    • Length
      30.6 cm
    • Width
      31.5 cm
    • Weight
      7 kg
    • Material
      Steel
