Product information
Description
Dimensions and technical details
- 220-240 V ~ 50 Hz

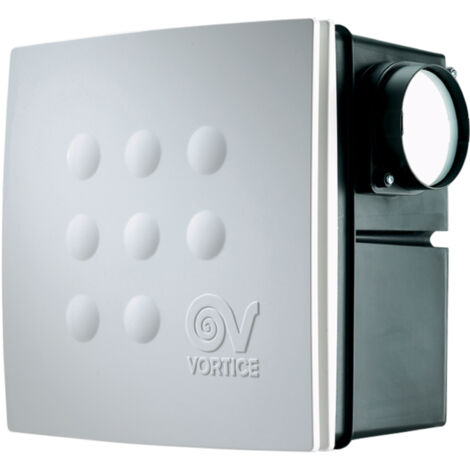

- Housing colour: white
- Housing material: ABS plastic, non-yellowing, UV-resistant
- Nominal diameter: 100 mm
- Speed levels: 2
- Wattage: 25 / 29 W
- Current consumption: 0.14 / 0.18 A
- Revolutions per minute: 1150 / 1890
- Airflow rate: 70 / 122 m³/h
- Total pressure Pmax: 206 / 331 Pa
- Sound pressure Lp-3m: 35.9 / 41.2 dB(A)
- Max. temperature for continuous operation: 50°C
- IP code: IPX4
- Insulation class: II
- Diameter duct connector: 97 mm
- Dimensions front cover: 287 x 287 x 37 mm
- Total depth: 167 mm
- Total depth with duct connector: 193 mm
- Weight: 2.8 kg
- Adjustable shut-off timer (3-20 min): fan turns off after expiration of the pre-set time
- Washable synthetic fibre fleece filter
- Thermal overload protection
- Self-lubricating bush bearings
- Non-return valve prevents cold air from infiltrating once the fan is turned off
- Mounting options: flush-mounted, any position
- Exhaust nozzles on the side and back make it possible to connect a second room to the fan
Features
- BrandVORTICE
- Width28.7 cm
- Height28.7 cm
- Weight2.8 kg
- Power29 W
