General description

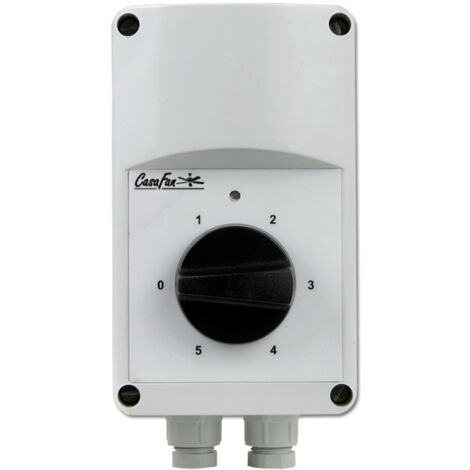

Wall control / step transformer CasaFan ETW is designed to control the speed of motors without producing buzzing noise. It allows for the connection of multiple fans to a single transformer, as long as the load capacity of the controller is not exceeded.Technical specifications
- 5 speed rotary switch with off-position
- Maximum load selectable: 1.0 to 10 A
- Graduation: 75 / 110 / 150 / 180 and 230 V
- Max. permitted ambient temperature: 40°C
- Double insulation, energy-saving
- Low fault liability, low-loss fan operation without interference noise
- Housing made of synthetic material, color: light grey
- Indicator light and additional connection for cover lap with up to 40 VA
- Model: surface-mounted
Compatibility and accessories
No specific compatibility or accessories mentioned.Installation
No specific installation instructions provided.Usage
No specific usage instructions provided.Other information
| Model | max. Amp. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | kg | Fuse | Water protection |
|---|---|---|---|---|---|---|---|---|---|
| ETW 1.0 | 1.0 | 84 | 160 | 88 | 71 | 108 | 1.0 | F T-1.25 A | IP54 |
| ETW 1.5 | 1.5 | 115 | 205 | 100 | 98 | 140 | 2.1 | F T-2.0 A | IP54 |
| ETW 2.2 | 2.2 | 115 | 205 | 100 | 98 | 140 | 2.3 | F T-3.15 A | IP54 |
| ETW 3.5 | 3.5 | 170 | 255 | 140 | 155 | 194 | 4.7 | F T-5.0 A | IP54 |
| ETW 50 | 5.0 | 170 | 255 | 140 | 155 | 194 | 5.0 | F T-8.0 A | IP54 |
| ETW 7.5 | 7.5 | 200 | 305 | 140 | 183 | 236 | 7.8 | F T-10.0 A | n/a |
| ETW 10.0 | 10.0 | 300 | 325 | 185 | 255 | 255 | 12.9 | F T-16.0 A | n/a |
