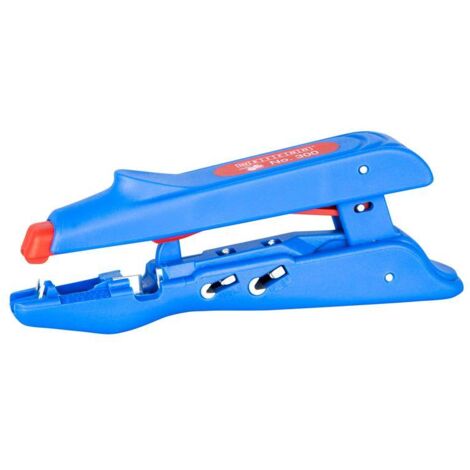

Weicon Tools Duo-Crimp Wire Stripping Tool, 0.5–6 mm² (10–20 AWG), Model No. 300, Suitable for Crimping and Stripping in Electrical and Wiring Applications

Description

• This automatic wire stripping and crimping tool is designed for use with cable ends ranging from 0.5 to 6.0 mm², compliant with DIN 46228-2 standards. It ensures precise stripping without damaging internal conductors and features an integrated lateral blade for easy access to crimping tasks. Made in Germany, the tool is constructed from reinforced polyamide with glass fibers, making it durable and ergonomic. The high-quality blades are crafted from hardened steel from Solingen, ensuring longevity and sharpness. The tool has been tested for safety by TÜV/GS certification.

Technical Specifications

• Product length: 160 mm
• Weight: 116 g
• Maximum operational cross-section: 6 mm²
• Minimum operational cross-section: 0.5 mm²
• Maximum AWG size: 10
• Minimum AWG size: 20
• Additional technical details: It features two pressure areas for crimping sleeves, suitable for 0.5-2.5 mm² and 4.0-6.0 mm², with an easily accessible side cutter blade.

Compatibility and Accessories

• Compatible with wire sizes from 0.5 to 6.0 mm² and AWG 20 to 10
• Includes a side cutter blade for cutting wires

Installation

• No installation required; ready to use out of the box

Usage

• Remove insulation from the wire end
• Insert the wire into the appropriate crimping area based on its size
• Use the tool to crimp the sleeve securely
• Utilize the side cutter to trim excess wire if needed

Other Information

• Made in Germany with high-quality materials
• Tested for safety and durability
