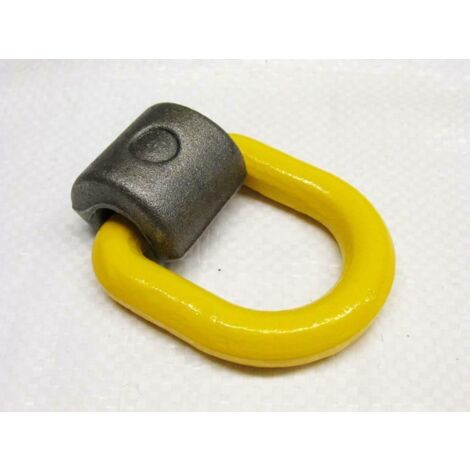

Weld On Lifting Point 1 Ton Grade 80 (G80 1T Lashing Attachment Rigging Excavator)

Name: Weld On Lifting Point 1 Ton Grade 80 (G80 1T Lashing Attachment Rigging Excavator)
Brand: SECUREFIX DIRECT
SKU: SFYASWLP1
Price: 10.95 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Weld On Lifting Point designed for a safe working load of 1 ton, made from high-quality Grade 80 material. This lifting point is primarily used in the lifting gear industry and is welded on where a permanent lifting point is required. The finish is yellow, which may vary.

Technical specifications

Safe Working Load: 1 Ton

Material: Grade 80

Factor of Safety: 4:1

Conforms to: BS EN 1677

Dimensions:

A: 28.5 mm

B: 35 mm

C: 40 mm

D: 38 mm

E: 13 mm

F: 77.5 mm

Installation

Always ensure that welding is carried out by a qualified person. General rules include preheating the area, avoiding tack welding, and not using short thin runs.

Other information

*Test Certificate will be supplied via email.*

Features

Brand
SECUREFIX DIRECT
Material
Steel
Colour
Yellow
Maximum load
1000 kg
Pcs per pack
1
