Weld On Lifting Point with Spring 8 Ton Grade 80 (G80 8T Lashing Attachment Excavator)

Name: Weld On Lifting Point with Spring 8 Ton Grade 80 (G80 8T Lashing Attachment Excavator)
Brand: SECUREFIX DIRECT
SKU: SFYASWLP8
Price: 31.25 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

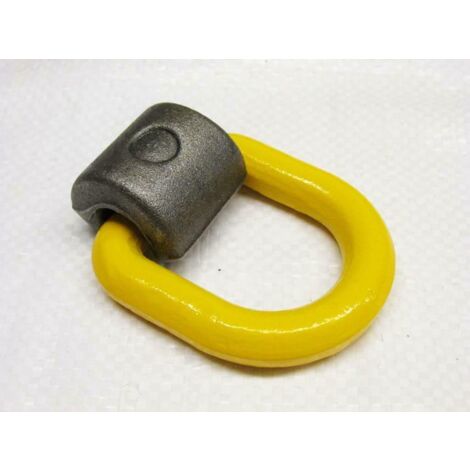

Weld On Lifting Point with Spring is a high-quality lifting gear designed for the lifting gear industry. It is primarily used as a permanent lifting point, welded on where needed. This particular model features a spring mechanism that keeps it rigid and in a suitable position when not under load.

Technical specifications

Safe Working Load: 8 Ton (subject to correct welding procedure)

Material: Grade 80

Finish: Yellow (may vary)

Factor of Safety: 4:1

Conforms to: BS EN 1677

Product Code: SFYASWLP8

Dimensions:

A: 67.5 mm

B: 66 mm

C: 69 mm

D: 66.5 mm

E: 26 mm

F: 140 mm

Installation

Always ensure that welding is carried out by a qualified person. General rules include preheating the area, avoiding tack welding, and not using short thin runs.

Other information

*Test Certificate will be supplied via email*

Features

Brand
SECUREFIX DIRECT
Colour
Yellow
Maximum load
8000 kg
Warranty
1 year(s)
NF certification
NF191
