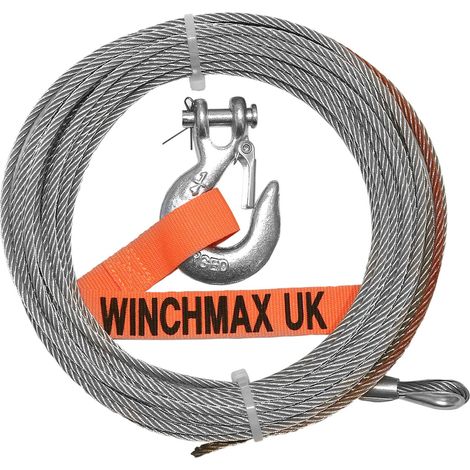

Wire Rope 15m x 5mm, Hole Fix. 1/4 inch Clevis Hook. For winches up to 4,000lb.

Name: Wire Rope 15m x 5mm, Hole Fix. 1/4 inch Clevis Hook. For winches up to 4,000lb.
Brand: WINCHMAX
SKU: WMWR15X5H
Price: 32.95 GBP
Availability: InStock
Rating: 5 (1 reviews)

Sold by Winchmax Ltd

Product information

Description

General description

This Wire Rope is designed for winches up to 4,000lb, making it suitable for most quad bike and ATV winches. The 15m length is ideal for recovery applications, particularly for Transit and other 3.5T recovery trucks, addressing the common issue of standard cable lengths being too long and difficult to manage.

Technical specifications

Length: 15m

Diameter: 5mm

Tested breaking load: 23.56KN / 5,297lb / 2402kg

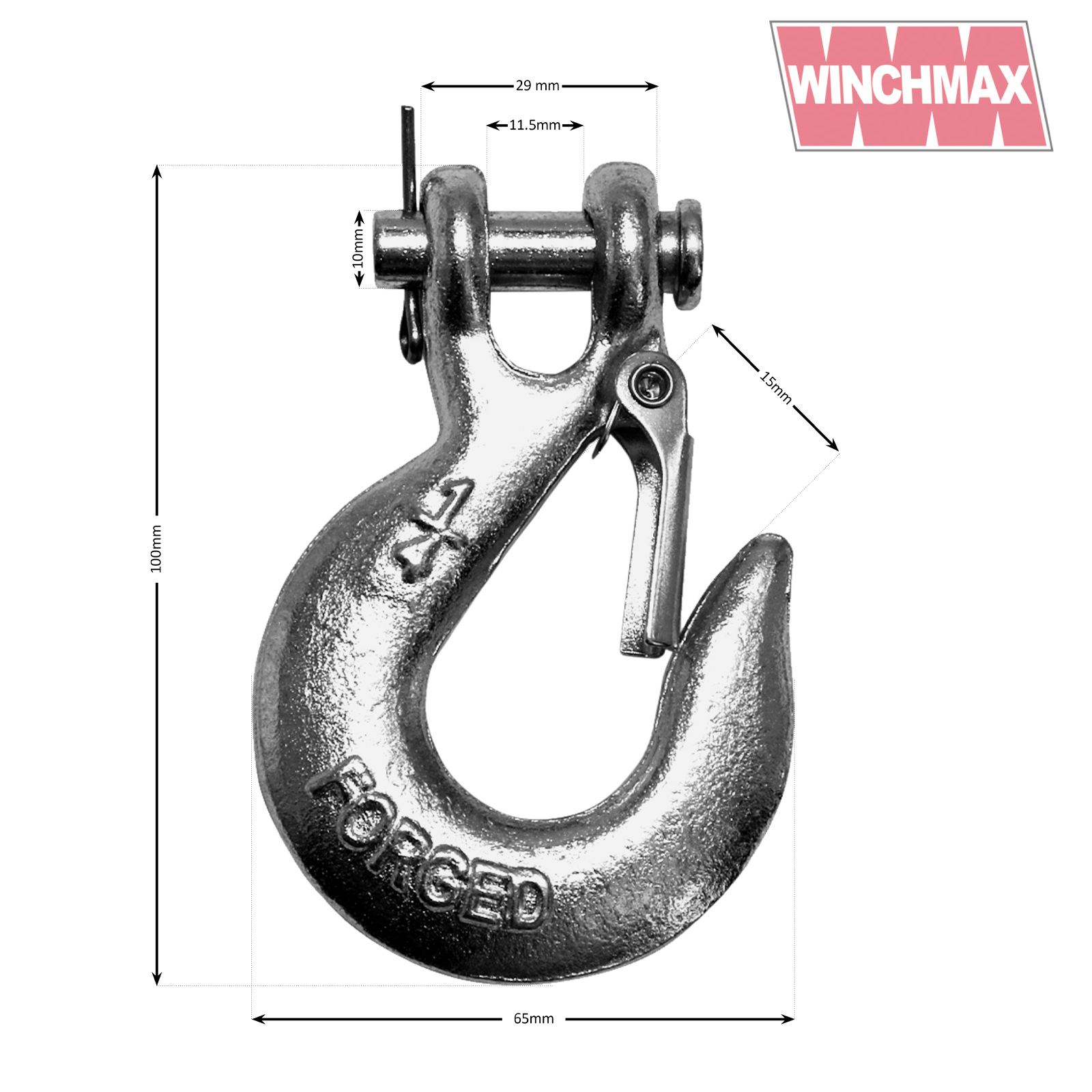

Hook type: Clevis Forged G70 1/4 inch Zinc Plated Hook

Material: Galvanised Winch Cable

Installation

Fitted with a thimble eyelet at the hook end.

Plain cut for through drum/grub screw drum attachment systems.

Ensure at least 6 tight wraps on the drum to anchor the cable securely.

Usage

This wire rope is specifically designed for winching applications, providing reliable performance for vehicle recovery and towing tasks.

Other information

Features

Brand
WINCHMAX
Origin
Made in China
Colour
Grey
Maximum load
2402 kg
Cable diameter
5 mm
Width
48 cm
Length
1500 cm
Material
Steel
Weight
2402 kg
Power supply
Manual
Winch operating type
Straight Line Pull
ManoMano Reference
ME41603391
MMID
211084253776
Product code
WMWR15X5H
EAN
5060854570406

Customer reviews

5,0

/ 1 Reviews

Reviews verified by ManoMano

MManoMano Customer

Published on 18/04/2022, United Kingdom

As winch wires go it’s flexible without being weak and should perform perfectly
