General description

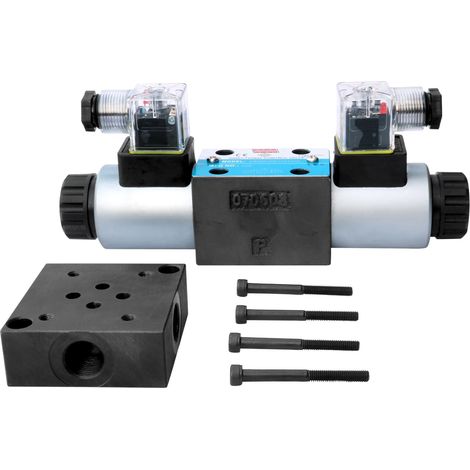

The CETOP3/NG6 Solenoid Operated Modular Directional Control Valve with Manifold Block is designed for high flow directional control in hydraulic winches. This valve is used to start, stop, and direct the oil flow efficiently.
Technical specifications
- Max flow rate: 80 l/min
- Max working pressure (MPa) A, B, P port: 31.5
- Max working pressure (MPa) T port: 16
- Weight: 2.2 kg
- Hydraulic fluid: Mineral Oil
- Seal material: NBR Seals
- Temperature range: -30 to +80 °C
- Viscosity range: 2.8 to 500 mm²/s
- Oil cleanliness class according to ISO 4406: Class 20/18/15
Compatibility and accessories
- Forged Steel Construction
- Side Ported P, T, A, B
- Port size: 3/8 inch BSP
Installation
The manifold subplate provides a connection for the P, T, A, and B pipework into the directional control valve and can accommodate a pressure regulator if required.
Usage
This solenoid valve is ideal for controlling hydraulic systems, allowing for precise management of oil flow in various applications.
