CETOP5/NG10 Solenoid Valve, Manifold and Regulator

Name: CETOP5/NG10 Solenoid Valve, Manifold and Regulator
Brand: WINCHMAX
SKU: WMHYBLOCK5,WMHYSOLVALVE5,WMHYREG5
Price: 219.95 GBP
Availability: InStock

Sold by Winchmax Ltd

Product information

Description

General description

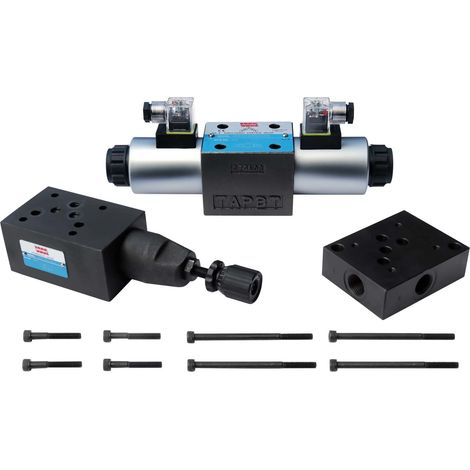

CETOP5/NG10 High Flow Modular Directional Control Valve with Pressure Regulator and Manifold Block is a solenoid-operated directional hydraulic control valve designed to start, stop, and direct oil flow. This three-position valve features double 24V coils and is capable of high flow rates up to 120 l/min. It includes a removable DIN plug connector with a clear cover, cable gland, and LED indicator for easy operation.

Technical specifications

Max Flow Rate: 120 l/min

Max Pressure (P, A, B): 31.5 MPa (350 bar / 4500 psi)

Max Pressure (T): 16 MPa

Weight: 6.2 kg (Directional Control Valve), 3.4 kg (Modular Relief Valve), 4.5 kg (Manifold)

Hydraulic Fluid: Mineral oil

Seal Material: NBR seals

Temperature Range: -30 to +80 °C

Viscosity Range: 2.8 to 500 mm²/s

Oil Cleanliness Class: ISO 4406 Class 20/18/15

Port Size: 1/2 inch BSP

Compatibility and accessories

Supplied with extended bolts for attachment between directional valve and manifold block

Installation

Installed between the manifold block and directional control valve

Usage

Manual override feature available

When set pressure is exceeded, P will bypass across to T

Easy to operate rotary calibration control with lock ring for pressure regulation

Setting range: 70-250 bar

Other information

Forged Steel Construction for manifold subplate

Industry-leading lifetime warranty on mechanical components & 3 years warranty on electrical components

VAT invoice provided with every sale

Features

Brand
WINCHMAX
NF certification
NF
Warranty
3 year(s)
Origin
Made in China
Colour
Black
