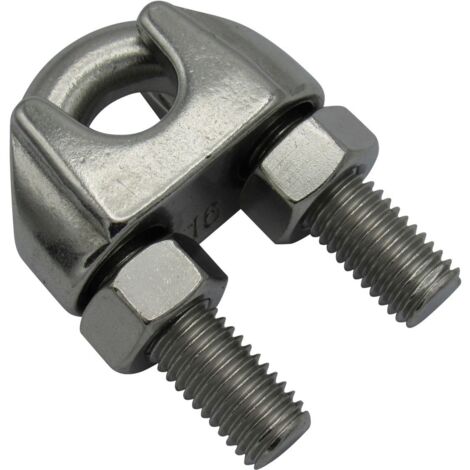

Wire Rope Bulldog Grips Stainless DIN741 19MM (Marine Grade Boat Cable Clip Clamp)

Name: Wire Rope Bulldog Grips Stainless DIN741 19MM (Marine Grade Boat Cable Clip Clamp)
Brand: SECUREFIX DIRECT
SKU: SFSSWRG20
Price: 11.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Wire Rope Bulldog Grips are designed for secure and reliable use with wire rope, particularly in marine applications. Made from 316 Grade Stainless Steel, these grips offer excellent rust protection, making them ideal for boats, yacht rigging, and public areas. They are essential for creating loops in wire rope, ensuring safety and durability in various settings.

Technical specifications

Size: 20MM (may be stamped 19MM)

Metal: 316 Grade Stainless Steel

Product Code: SFSSWRG20

Dimensions:

A (MM): 38

B (MM): 20

C (MM): 28.5

D (MM): 12

E (MM): 77

F (MM): 30

G (MM): 54

Installation

Prior to fitting, grease the threads on the nuts and bolts.

Ensure spacing between grips is at least 6 times the diameter of the rope.

Orient the grip correctly, placing the 'U' bolt on the unloaded end of the rope.

Tighten each nut evenly and in turn to achieve the recommended torque settings.

Leave unused for 24 hours and check torque setting again, re-tightening if necessary.

After the first application of the load, re-check torque setting and re-tighten if necessary.

Periodically check the torque setting during service.

Usage

These wire rope grips are widely used in the marine industry for various applications, including securing rigging and creating loops in wire rope. Their robust construction ensures they can withstand harsh marine environments.

Features

Brand
SECUREFIX DIRECT
Pcs per pack
1
Material
Stainless steel
Weight
100 g
Clamp tightening type
Bridle
ManoMano Reference
ME27130598
MMID
898183831617
Product code
SFSSWRG20
EAN
707152584456
