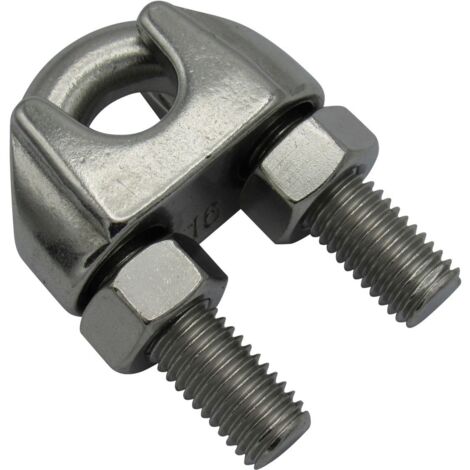

Wire Rope Bulldog Grips Stainless DIN741 25MM (Marine Grade Boat Cable Clip Clamp)

Name: Wire Rope Bulldog Grips Stainless DIN741 25MM (Marine Grade Boat Cable Clip Clamp)
Brand: SECUREFIX DIRECT
SKU: SFSSWRG25
Price: 17.95 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Wire Rope Bulldog Grips are designed for secure and reliable use with wire rope, particularly in marine applications such as boats, yacht rigging, and public areas. Made from 316 Grade Stainless Steel, these grips offer excellent rust protection, making them ideal for harsh environments.

Technical specifications

Size: 25MM

Material: 316 Grade Stainless Steel

Product Code: SFSSWRG25

Dimensions:

A (MM): 45

B (MM): 26

C (MM): 35

D (MM): 14

E (MM): 98

F (MM): 37

G (MM): 65

Installation

Prior to fitting, grease the threads on the nuts and bolts.

Ensure spacing between grips is at least 6 times the diameter of the rope.

Orient the grip correctly, placing the 'U' bolt on the unloaded end of the rope.

Tighten each nut evenly and in turn to achieve the recommended torque settings.

Leave unused for 24 hours and check torque setting again, re-tightening if necessary.

After the first application of the load, re-check torque setting and re-tighten if necessary.

Periodically check the torque setting during service.

Usage

The primary use of wire rope grips is to create loops in wire rope, providing a secure connection for various applications.

Features

Brand
SECUREFIX DIRECT
NF certification
NF316
Warranty
1 year(s)
Material
Stainless steel
Certification body
DIN
Colour
Multicolour
Pcs per pack
1
ManoMano Reference
ME27132600
MMID
349521515345
Product code
SFSSWRG25
EAN
707152584470
