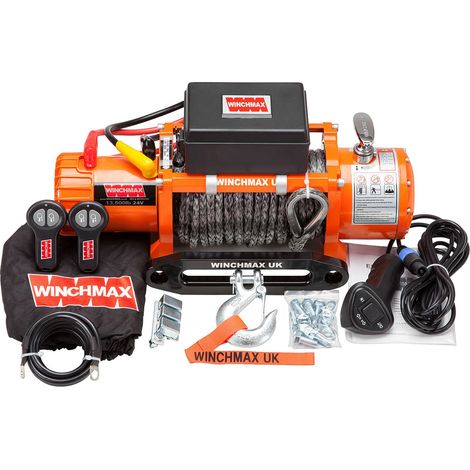

13,500lb (6,123kg) Original Orange 24v Electric Winch. 28m x 11mm Dyneema Rope, Twin Wireless Remote Control.

Name: 13,500lb (6,123kg) Original Orange 24v Electric Winch. 28m x 11mm Dyneema Rope, Twin Wireless Remote Control.
Brand: WINCHMAX
SKU: WM1350024VSYN
Price: 499.95 GBP
Availability: InStock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by Winchmax Ltd

Product information

Description

13,500lb (6,123kg) Original Orange 24V Winch, Dyneema Rope, Twin Wireless Remote Control

Ideal for recovery trucks and 4x4’s up to 3.5T

Features

13,500lb (6,123kg) straight-line pull 24V electric winch.
Latest technology long-range wireless remote controls, twin handsets.
Super powerful 24V 6.8hp/5.1kw series wound electric motor.
Massive ultra-tough three-stage gearbox with hardened steel gears.
Motor and gearbox casing machined from billet steel for maximum impact protection.
28m x 11mm Dyneema SK75 multi-strand synthetic rope.
New ‘through-drum’ rope connection with grub screw clamp for ultra-secure rope attachment to drum.
Clevis hook 3/8 inch G70 grade forged. Safety catch and hand saver. Zinc plated for corrosion resistance.
WINCHMAX aluminium hawse fairlead. Precision CNC milled, laser-etched.
Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
Power in/out big grip wander lead with extra-long 4.5m cord.
Sliding ring gear freewheel clutch.
High tensile fixing bolt kit.
Strong WINCHMAX branded cover to protect from water and road grime.
Heavy-duty & built to last - gross weight 30kg.
CE certified & built to ISO9001 quality management system requirements.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	13,500lb (6,123kg)
Motor	24V 6.8hp/5.1kw, series wound
Control	Remote switch, 4.5m lead, in and out
Gear Train	3 stage planetary
Gear Reduction Ratio	265:1
Clutch	Sliding ring gear
Braking Action	Automatic in the drum
Drum Size	Diameter 63.5mm (2.5”) Length 224mm (8.82”)
Drum Finish	Black, painted
Cable	28m x 11mm Dyneema SK75 Synthetic Rope
Hook	Clevis hook 3/8 inch, zinc-plated
Fairlead	One-piece billet aluminium hawse fairlead
Battery	Recommended 650CCA minimum for winching
Battery Leads	2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter
Winch Finish	Original Orange powder-coated
Weight (GW)	30kg (66lb)
Overall Dimensions (LxWxH)	536 x 160 x 218mm (21.3” x 6.3” x 8.6”)
Mounting Bolt Pattern	10.00” ± 0.015” x 4.50” ± 0.010” (254 x 114.3mm)
Motor Current	65-500A
No Load Line Speed	6.5m/min (21.3 ft/min)

Layer Rated	Line pull (lb)	Line Pull (kg	Total Rope On Drum (ft/m)
1	13500	6123	20.4/6.22
2	10010	4540	41/12.0
3	8840	4009	71/21.0
4	7410	3361	85/24.0

Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	21.3ft (6.5m)	65A
2000 (907)	11.5ft (3.5m)	126A
4000 (1814)	9.4ft (2.85m)	175A
6000 (2722)	7.9ft (2.4m)	230A
8000 (3629)	6.5ft (2.0m)	280A
10000 (4536)	5.8ft (1.75m)	355A
13500 (6123	4.1 (1.25m)	415A
