General description

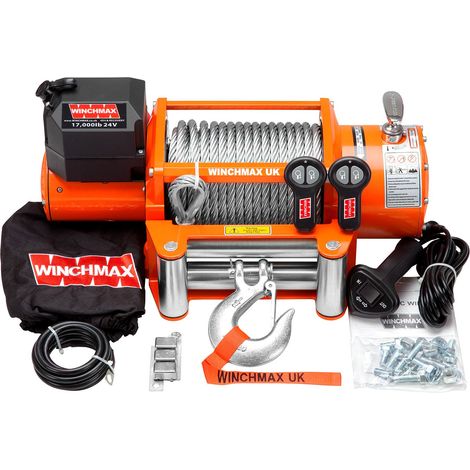

Ideal for recovery trucks and 4x4s over 3.5T, the 17,000lb (7,711kg) Original Orange 24V Electric Winch is designed for heavy-duty performance. It features a powerful electric motor and a robust steel rope, making it an essential tool for off-road enthusiasts and professionals alike.Technical specifications
- Single Line Rated Pull: 17,000lb (7,692kg)
- Motor: 24V 6.8hp/5.1kw, series wound
- Control: Remote Switch, 4.5m lead, in and out
- Gear Train: 3 stage planetary
- Gear Reduction Ratio: 358:1
- Clutch: Sliding ring gear
- Braking Action: Automatic in the drum
- Drum Size: Diameter 85mm (3.4″), length 224mm (8.82”)
- Drum Finish: Black, painted
- Cable: 26m x 12mm galvanized steel wire rope
- Hook: Clevis hook 1/2 inch, zinc-plated
- Fairlead: 4-Way roller fairlead
- Battery: Recommended 650CCA minimum for winching
- Battery Leads: 2 gauge, 1.83m (72”) 35mmsq – 6.5mm diameter
- Winch Finish: Original Orange powder-coated
- Weight (GW): 60kg (132lb)
- Overall Dimensions (LxWxH): 555 x 196 x 249mm
- Mounting Bolt Pattern: 10.00” ± 0.015″ x 4.50” ± 0.010″ (254 x 114.3mm)
- Motor Current: 65-500a
- No Load Line Speed: 7.28m/min (23.9 ft/min)
Usage
This winch is ideal for heavy-duty applications, particularly in recovery scenarios for trucks and 4x4 vehicles. Its powerful motor and durable construction ensure reliable performance in challenging conditions.Other information
Industry-leading lifetime warranty on mechanical components & 3 years warranty on electrical. VAT invoice provided with every sale.
