13,500lb (6,123kg) 'SL Series' Original Orange 24v Winch. 24m x 9.5mm Steel Rope, Wireless Remote Controls.

Name: 13,500lb (6,123kg) 'SL Series' Original Orange 24v Winch. 24m x 9.5mm Steel Rope, Wireless Remote Controls.
Brand: WINCHMAX
SKU: WMSL1350024V
Price: 449.95 GBP
Availability: InStock

Sold by Winchmax Ltd

Product information

Description

13,500lb / 6,123kg ‘SL Series’ Original Orange 24v Electric Winch, Twin Wireless Remote Control

Ideal for recovery trucks and 4x4’s up to 3.5T

Features

13,500lb / 6,123kg straight-line pull ‘SL series’ 24v electric winch.
Latest technology long-range combination wireless remote control.
Super powerful 24v 6.8hp/5.1kw series wound electric motor.
Massive ultra-tough three-stage gearbox with hardened steel gears.
Motor and gearbox casing machined from billet steel for maximum impact protection.
24m of 9.5mm multi-strand steel wire rope.
New ‘through-drum’ rope connection with grub screw clamp for ultra-secure rope attachment to drum.
Clevis hook with safety catch and hand saver. 3/8 inch G70 grade forged. Zinc plated for corrosion resistance.

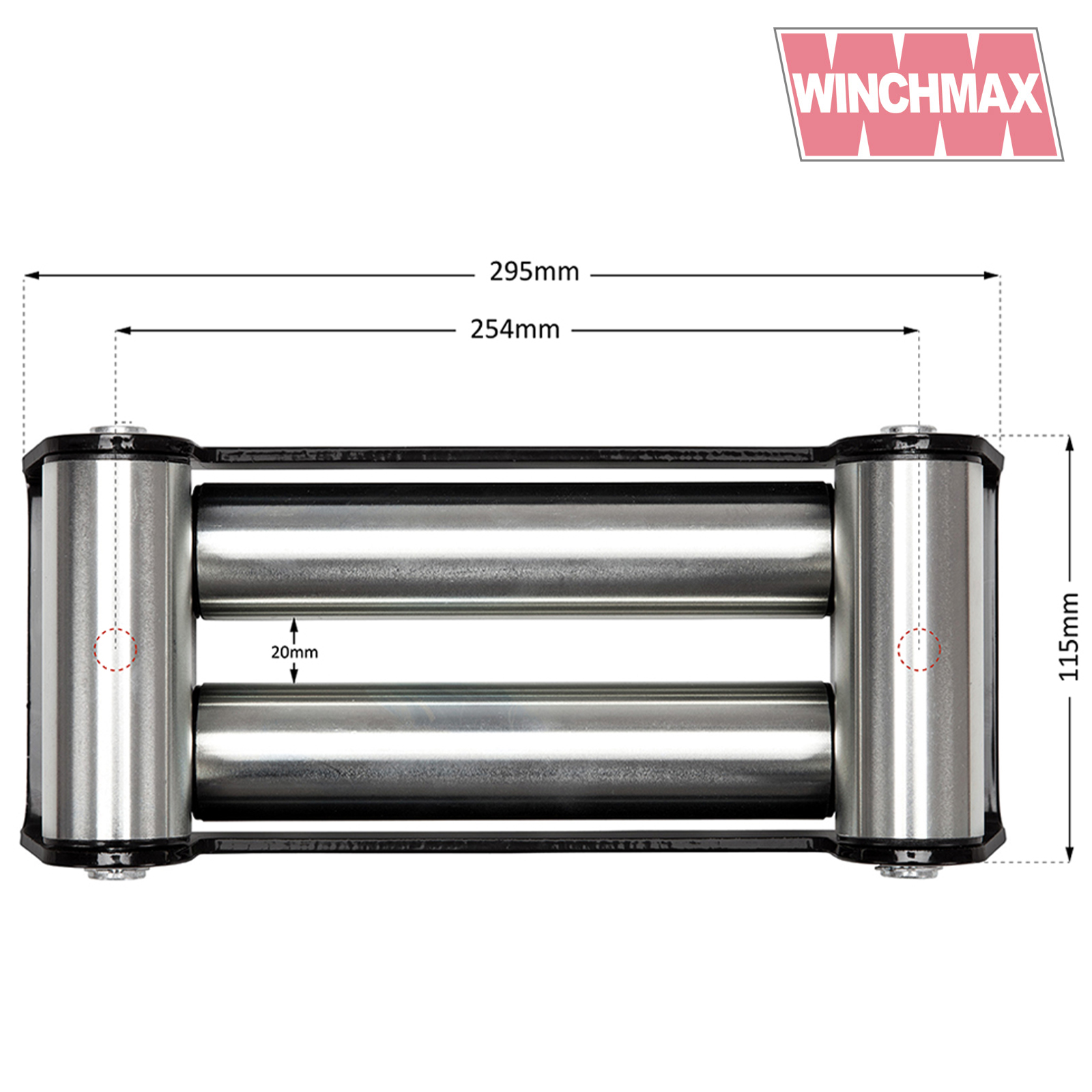

Tough four roller fairlead with zinc plated rollers.
Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
Power in/out big grip handheld unit.
Sliding ring gear freewheel clutch.
High tensile fixing bolt kit.
Strong WINCHMAX branded cover to protect from water and road grime.
Heavy-duty & built to last - gross weight 40kg.
CE certified & built to ISO9001 quality management system requirements.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Single Line Rated Pull	13,500lb / 6,123kg
Motor	24v 6.8hp/5.1kw series wound
Control	Big grip remote switch, 4.5m lead
Gear train	3 stage planetary
Gear reduction ratio	265:1
Clutch	Sliding ring gear
Braking Action	Automatic in the drum
Drum Size	Diameter 63.5mm / 2.5") Length 224mm (8.82”)
Cable	24m of 9.5mm (3/8") diameter steel wire rope
Hook	Clevis hook with safety catch, zinc plated.
Fairlead	4-Way roller fairlead
Battery	Recommended 650CCA minimum for winching
Battery Leads	2 gauge, 1.83m / 72”) 25mmsq - 5.6mm diameter
Finish	Original Orange powder coated
Weight (GW)	40kg (88lb)

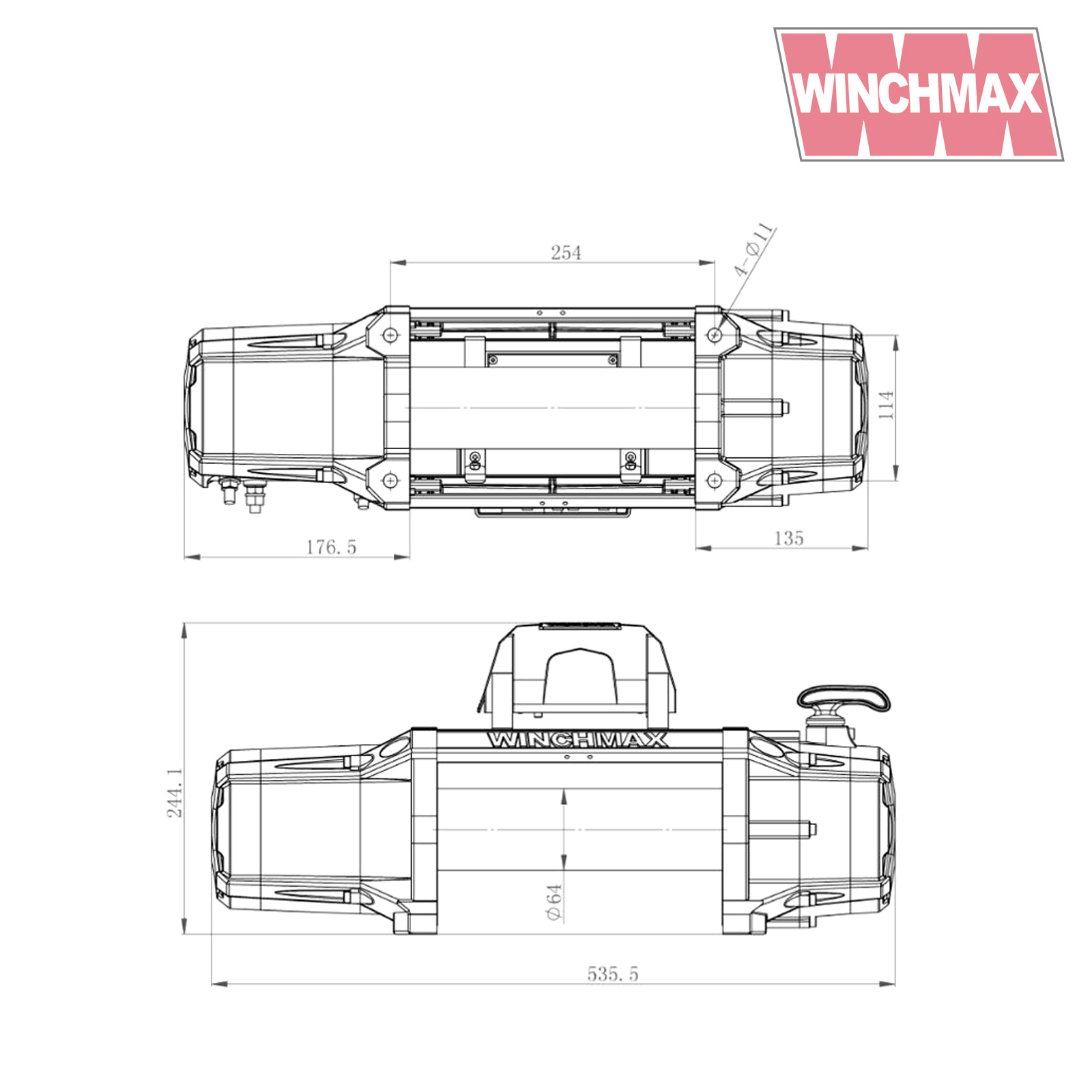

Overall Dimensions (LxWxH)	536 x 160 x 218mm / 21.3" x 6.3" x 8.6")
Mounting Bolt Pattern	10.00”±0.015" x 4.50”±0.010" / 254 x 114.3mm)
Motor Current	65-500A
No Load Line Speed	7.5m/min / 24.6 ft/min)
Waterproof	IP67 Rating

Layer Rated	Line pull (lb)	Line Pull (kg	Total Rope On Drum (ft/m)
1	13500	6123	20.4/6.22
2	9530	4332	41/12.0
3	7929	3604	71/21.0
4	6770	3077	85/24.0

Line Pull (lb/kg	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	24.6ft / 7.5m)	70A
3000 / 1363)	11.48ft (3.5m)	138A
6000 / 2727)	8.86ft / 2.7m)	218A
9000 / 4090)	7.72ft / 2.2m)	260A
13500 / 6123)	5.58ft / 1.7m)	350A
