General description

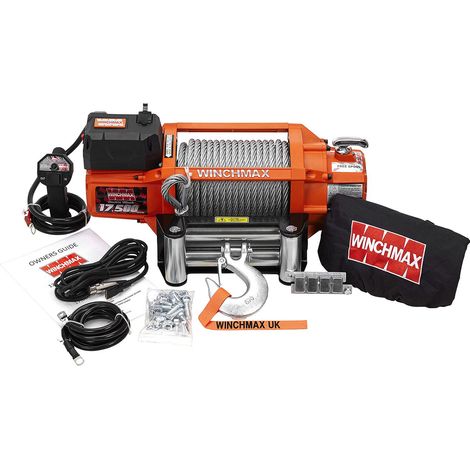

The 17,500lb (7,938kg) Original Orange 'SL Series' 12V Electric Winch is designed for recovery trucks and 4x4 vehicles over 3.5T. This powerful winch features a robust construction and advanced technology, making it an ideal choice for heavy-duty applications.
Technical specifications
- Single Line Rated Pull: 17,500lb (7,938kg)
- Motor: 12V 6.8hp/5.1kw series wound
- Control: Big grip remote switch, 4.5m lead
- Gear train: 3 stage planetary
- Gear reduction ratio: 430:1
- Clutch: Sliding ring gear
- Braking Action: Automatic in the drum
- Drum Size: Diameter 88mm (3.45”), Length 224mm (8.82”)
- Drum Finish: Black, painted
- Cable: 26m x 12mm galvanized steel wire rope
- Hook: Clevis hook 1/2 inch, Zinc plated
- Fairlead: 4-Way roller fairlead
- Battery: Recommended 750CCA minimum for winching
- Battery Leads: 2 gauge, 1.83m (72”) 35mmsq - 6.5mm Diameter
- Winch Finish: Original Orange Powder Coated
- Weight (GW): 60kg (66lb)
- Overall Dimensions (LxWxH): 562 x 194 x 248.3mm (22.1” x 7.6” x 9.8”)
- Mounting Bolt Pattern: 10.00” ±0.015” x 4.50” ±0.010” (254 x 114.3mm)
- Motor Current: 65-500A
- No Load Line Speed: 7.2m/min (23.6 ft/min)
- Waterproof: IP67 Rating
Usage
This winch is ideal for heavy-duty recovery tasks, making it suitable for use in off-road vehicles and recovery trucks. The wireless remote control allows for convenient operation from a distance.
Other information
Industry-leading lifetime warranty on mechanical components & 3 years warranty on electrical components. VAT invoice provided with every sale.
