General description

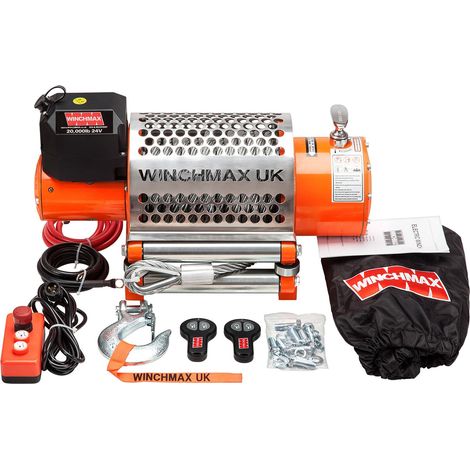

The 20,000lb (9,072kg) Original Orange Recovery 24V Electric Winch is designed for heavy-duty recovery tasks. It features a robust steel rope and comes with twin wireless remote controls for convenient operation. The winch is equipped with an integral roller fairlead, eliminating the need for a mounting plate.
Technical specifications
- Single Line Rated Pull: 20,000lb (9,072kg)
- Motor: 24V 7.0HP/5.2KW, series wound
- Motor Current: 75-570A
- Gear Train: 4 stage planetary
- Gear Reduction Ratio: 544:1
- Clutch: Sliding ring gear
- Braking Action: Automatic
- Drum Size: Diameter 89mm, Length 228.6mm
- Cable: 25m x 14mm galvanized steel wire rope
- Hook: Clevis hook 1/2 inch
- Fairlead: Heavy-duty 4 way roller fairlead
- Battery: Recommended 750CCA Minimum for Winching
- Winch Finish: Original Orange powder-coated
- Weight (Gross): 85kg (187lb)
- Overall Dimensions (LxWxH): 576 x 302 x 305mm
- Mounting Bolt Pattern: 10.00” x 4.50” (254 x 114.3mm)
- No Load Line Speed: 5.1m/min (16.73 ft/min)
Usage
This winch is ideal for heavy recovery operations, making it suitable for off-road vehicles, trailers, and other applications requiring significant pulling power. The wireless remote control allows for safe operation from a distance.
Other information
Industry-leading lifetime warranty on mechanical components and 3 years warranty on electrical components. VAT invoice provided with every sale.
