1.5 Ton 0-20MM Vertical Plate Lifting Clamp - 1500KG Grip Lift

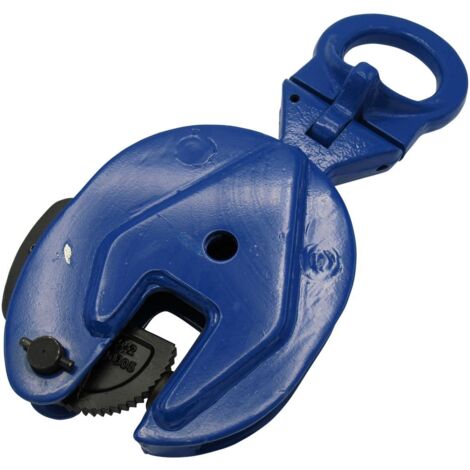

Vertical Plate Lifting Clamp Lifting Capacity - 1.5 Ton Jaw Opening - 0-20MM Conforms To - BS EN 13155 Product Code - SFVLC1.5 Min Steel Thickness(MM) - 4 Min Load (KG) - 300 A Max (MM) - 370 A Min(MM) - 345 B Max(MM) - 175 B Min(MM) - 167 C(MM) - 57 D(MM) - 198 E(MM) - 74 F(MM) - 60 G(MM) - 29 H(MM) - 67 I(MM) - 17 J(MM) - 76 These vertical lifting plate clamps are used for vertical lifting and turning of plate material. These clamps do not slip when lifting force is applied or when being lowered. These clamps are equipped with an articulating shackle to provide a versatile and smooth operation. Please note that the minimum loading weight is 20% of swl. The minimum thickness is 20% of the jaw opening plus the minimum opening. Test certificate included (sent via email upon request)
