Product information

Description

General description

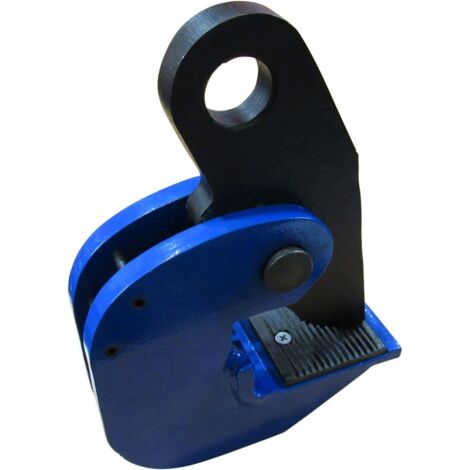

These Horizontal Lifting Plate Clamps are designed for lifting sheet materials in a horizontal position. They ensure a secure grip and do not slip when lifting force is applied or during lowering.

Technical specifications

  • Lifting Capacity: 0.75 Ton
  • Jaw Opening: 0-25MM
  • Minimum Steel Thickness: 5MM
  • Minimum Loading: 150KG
  • Product Code: SFHLC0.75
  • Dimensions: A(MM)MIN: 145, A(MM)MAX: 173, B(MM)MIN: 122, B(MM)MAX: 143, C(MM): 113, F(MM): 48, G(MM): 21.3, H(MM): 132, I(MM): 14

    • Other information

  • Conforms to BS EN 13155
  • Test Certificate included (sent via email)
  • Minimum loading weight is 20% of SWL
  • Minimum thickness is 20% of the jaw opening plus the minimum opening

    • Features

    • Brand
      SECUREFIX DIRECT
    • Material
      Two-material
    • Power source
      Manual
    • Suitable for
      Metal
    • Pcs per pack
      1
