Description

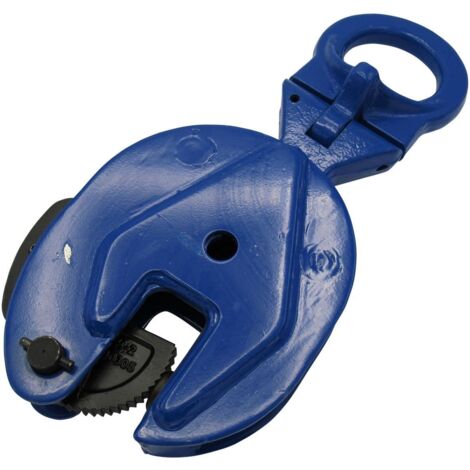

Vertical Plate Lifting Clamp
Lifting Capacity - 2 Ton
Jaw Opening - 0-25MM
Conforms To - BS EN 13155
Product Code - SFVLC2
Min Steel Thickness(MM) - 5
Min Load (KG) - 400
A Max (MM) - 375
A Min(MM) - 335
B Max(MM) - 180
B Min(MM) - 173
C(MM) - 60
D(MM) - 204
E(MM) - 74
F(MM) - 57
G(MM) - 36
H(MM) - 67
I(MM) - 17
J(MM) - 91
These vertical lifting plate clamps are used for vertical lifting and turning of plate material. These clamps do not slip when lifting force is applied or when being lowered. These clamps are equipped with an articulating shackle to provide a versatile and smooth operation.
Please note that the minimum loading weight is 20% of swl.
The minimum thickness is 20% of the jaw opening plus the minimum opening.
Test certificate included (sent via email upon request)
Features
- BrandSECUREFIX DIRECT
- Pcs per pack1
- Power sourceManual
- MaterialSteel
- Weight100 g
- ManoMano ReferenceME27139268
- MMID338946960015
- Product codeSFVLC2
- EAN0600988494176
