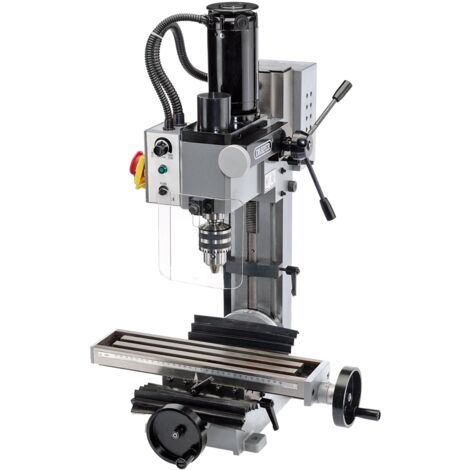

Draper 34023 Variable Speed Mini Milling/Drilling Machine, 350W

Name: Draper 34023 Variable Speed Mini Milling/Drilling Machine, 350W
Brand: DRAPER
SKU: MILL-170
Price: 1040.32 GBP
Availability: InStock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by BuyaParcel and 1 other seller

Product information

Description

Bench mounting mini milling/drilling machine which will handle most materials. Incorporates a working table with T slots to enable clamping or workpieces and metric graduated compound scales. Column tilts from 0-45 from vertical. No-volt switch to prevent accidental switch on and approved three pin cable and approved plug. Carton packed.

Can be bench mounted
Handles most materials
Working table with T slots
Metric graduated compound scales
Column tilts from 0-45°
No-volt switch
Approved 3-pin plug and cable
Drilling capacity: 13mm
Face milling capacity: 30mm
End milling capacity: 16mm
Headstock travel: 180mm
Cross axis: 100mm
Longitudinal axis: 220mm
Spindle tilt axis: 177;0-45
Spindle taper: MT3
Low spindle speed : 100-1100r/min
High spindle speed: 100-2500r/min
T-slot: 12mm
Throat depth: 170mm
Table size: 390 x 92mm
Weight: 60kg

Features

Brand
DRAPER
Warranty
1 year(s)
Power source
Corded
Material
Metal
Operating Mode
Electric
Weight
60 kg
Cutting depth
30 mm
Power
350 W
Variable speed
Yes
ManoMano Reference
ME1308786
MMID
393721439833
Product code
MILL-170
EAN
5010559340231
