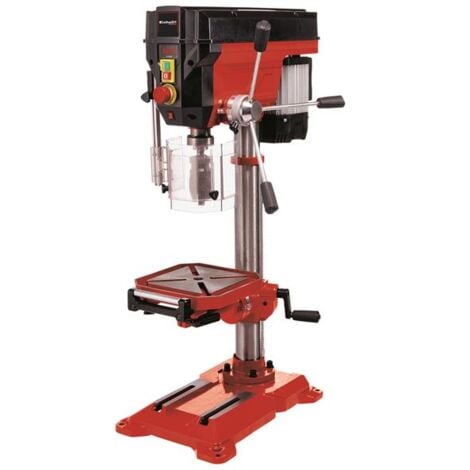

Einhell TE-BD 750 E Bench Drill 750W 240V - Precision Tool

£506.82
Sold by BuyaParcel and 2 other sellers

You may also like

Compare with similar items

Often purchased together

Product information

Description

General description

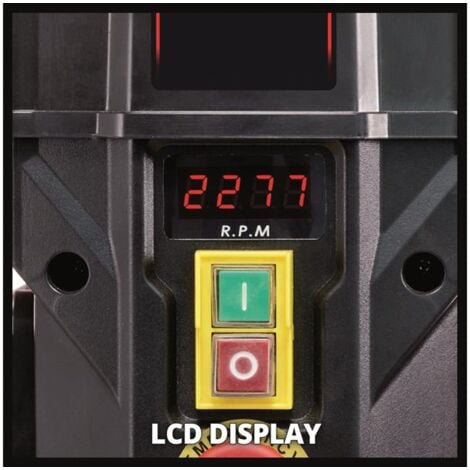

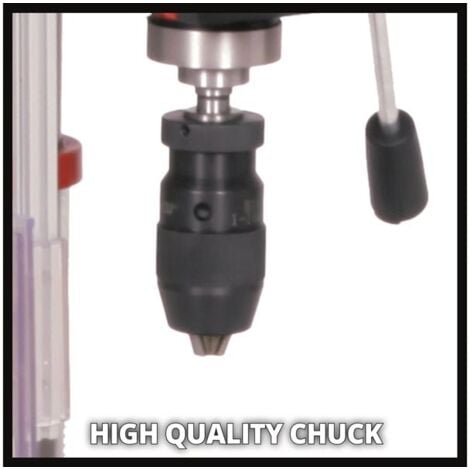

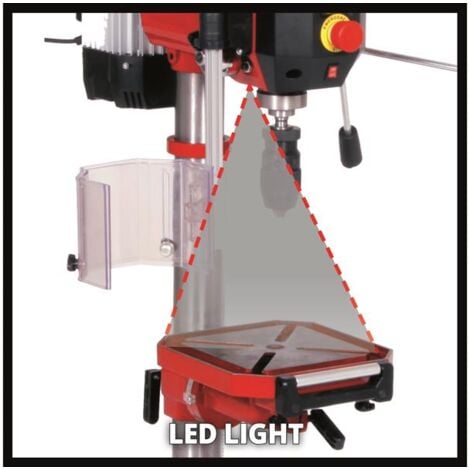

The Einhell TE-BD 750 E Bench Drill is a powerful precision tool that no tool kit should be without. Comfortable operation is ensured by the smooth-running and quiet induction motor. Its speed is infinitely adjustable and the current speed is indicated by an LCD display. The drill is suitable for fitting all standard sizes of drill bits with a quick-action chuck ranging from 1 to 16mm, and it also features an MK2 chuck for morse taper bits. The height-adjustable drill table with tilt and swivel function, along with width extension elements, ensures optimum conditions for all desired drilling operations. An LED light illuminates the drill table effectively, while the drilling spindle with ball bearings guarantees long-lasting use. Additional safety is provided by the emergency stop switch and the safety spindle protection.

Technical specifications

  • Input Power: S2 750W
  • Speed: 450-2,500/min
  • Drill Bit Diameter: 1-16mm
  • Drilling Depth: 80mm
  • Projection: 152mm
  • Rotating Range (Drill Table): 90°
  • Weight: 44.4kg
  • Features

    • Brand
      EINHELL
    • Power
      750 W
    • Warranty
      3 year(s)
    • Number of speeds
      1
    • Origin
      Made in China
    • Voltage
      240 V
    • Emergency stop button on front panel
      Yes
    • Machine stops if pulley cover is opened
      Yes
    • With integrated lighting
      Yes
    • Drill bit/chuck compatibility
      Morse taper 2
    • Max drilling diameter
      16 mm
    • Chuck diameter
      16 mm
    • Max diameter for metal drilling
      16 mm
    • Availability of spare parts
      10 year(s)
    • Width
      32 cm
    • Length
      78 cm
    • Magnetic
      Yes
    • Table material
      Aluminum cast
    • Frame material
      Steel
    • Material
      Plastic
    • Chuck taper number
      Morse taper 2
    • Turntable
      Yes
    • Weight
      44.4 kg
    • Cutting depth
      80 mm
    • Drilling depth
      8 cm
    • Input power
      750 W
    • power supply
      Electric
    • Tilting table
      Yes
    • Adjustable table
      Yes
    • Chuck
      Morse taper shank
    • Variable speed
      Yes
    • ManoMano Reference
      ME6772362
    • MMID
      794664222369
    • Product code
      4250715
    • EAN
      4006825617771

    Customer reviews

    GGerald
    Published on 28/06/2024, France

    easy and quick assembly. apparently solid and practical material for reading the rpm.

    CChristian
    Published on 03/12/2018, France

    I was surprised by this drill, despite the comments. For power, vario and price, I do not regret my purchase.

    8 people found this helpful
    MMichel
    Published on 03/12/2024, France

    Hello, The frame, the motor, the chuck, the depth adjustment, the removable protection, are excellent. The mechanical speed variator generates some vibrations. This causes a noise from the hood that I almost cancelled with a simple self-adhesive foam on the periphery. Already many holes drilled precisely with pleasure. Possible improvements: Replacement of the mechanical variator with an electronic variator. Multi-source lighting, more powerful. Laser sight. Foundry paint better finished

    2 people found this helpful
    GGilles
    Published on 12/11/2022, France

    positive: very stable (heavy), quiet, a lot of adjustment possible, illumination of the drilling area, the channel around the top allows you to put small objects, the telescopic support at the end of the top can be used as an additional shelf, possibility of using large forests in M2 cone (I go up to 20mm) negative: not possible to lock the column in the low position for milling, yet a locking system at the end of the axis opposite the capstan would have been easy to do. It is necessary to play on the height of the plate whose rack lacks fluidity especially in descent (polishing of the column and ring + better gearing?)

    3 people found this helpful
    CClaude
    Published on 08/02/2021, France

    Excellent product as described

    LLUC
    Published on 15/10/2020, France

    Heavy machine, robust and easy to assemble. Not used at the moment
