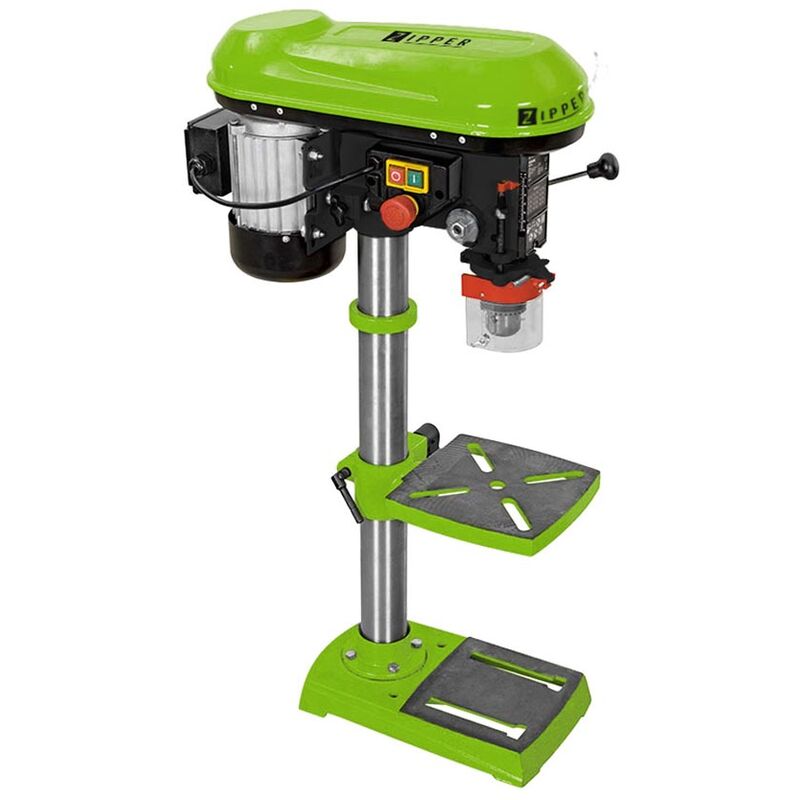

230V BENCH DRILL PRESS PILLAR DRILLING CROSS ZIPPER ZI-STB16T

Sold by GLS72

Often purchased together

Product information

Description

General description

The 230V Bench Drill Press Zipper ZI-STB16T is a versatile and lightweight tool designed for precision drilling in wood, metal, and plastics. Its compact design and solid base plate ensure stability during operation, making it ideal for light-duty tasks.

Technical specifications

  • Motor power: 630 W (S2 15min)
  • Voltage: 230V / 50Hz
  • Max drilling capacity: 16 mm
  • Drilling spindle speed: 12 speeds (420 - 2700 min-1)
  • Spindle stroke: 60 mm
  • Outreach: 126 mm
  • Max distance spindle to table: 410 mm
  • Max distance spindle to base: 525 mm
  • Base dimensions: 343 x 213 mm
  • Total dimensions: 475 x 295 x 840 mm
  • Weight: 30 kg
  • Sound pressure level: 67 dB(A)
  • Compatibility and accessories

  • Includes drill headstock
  • Table
  • Base
  • Support column
  • 16 mm drill chuck
  • Plastic spindle/chuck guard
  • R & F table handle
  • Rack and pinion plate
  • 3 x handles
  • Fixing bolts
  • Instruction manual
  • Features

    • Brand
      ZIPPER
    • Power
      630 W
    • Warranty
      1 year(s)
    • Number of speeds
      12
    • Origin
      Made in China

    Customer reviews

    Ppatrick
    Published on 10/04/2023, France

    Product received on time. Parcel arrived damaged, but effective interior protection. no damage to the product. Simple assembly. I added washers with the base fixing screws. No desire to screw directly onto the painted base. two holes for screwing the drill press base to the workbench. I would have preferred 4 holes and at the corners. when the warranty is over, I will make this modification. For the protective cover, the screws supplied for tightening the flange do not correspond to the housing. Screw replaced by an M5 with butterfly head. Belt tension adjustment is simple and effective with the floating intermediate pulley. A handle for tensioning would have been useful, I'll put one on. Assembly of the chuck to the mallet without problem. After checking, no unbalance detected, therefore less than 1 or 2/10. Silent. I will add a speed range identification sheet. The rise of the drilling table is not precise. But it doesn't matter, I'll mount a rip fence on it with carriage and stops for serial drilling. The big lack is the laser sight. All that remains is to install one for freehand drilling. It only remains to try the piercing capabilities.

    10 people found this helpful
    MManoMano Customer
    Published on 11/03/2021, France

    good little product easy to assemble corresponds to what I ordered I do not regret my purchase

    CChristian
    Published on 01/10/2024, France

    Not used enough, fulfills its function but noisy

    JJacques
    Published on 01/07/2022, France

    Product corresponding to my expectations, I am very satisfied.

    1 person found this helpful
    GGiovanni
    Published on 08/12/2025, Italy

    A good drill

    MManoMano Customer
    Published on 06/08/2024

    This product seems correct But after 3 starts the switch no longer works. If this can happen it is very unpleasant not to be able to obtain this spare part. I am asked to return the complete product except it is installed assembled and fixed on a workbench in my country house where I only go on weekends except on weekends the carrier does not work. Add to that an announced delay of 3 weeks and I risk being out of order for several months knowing that this house is closed in winter from December to April.

    6 people found this helpful
