35MM Hinge Jig Drill Bit Sets Concealed Hinge Drill Bit Guide Drilling Locating Tools for Cabinet Hinges and Mounting Plates,For Woodworking

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by My Shiop GB

Product information

Description

General description

The 35MM Hinge Jig Drill Bit Set is designed for precise drilling of concealed hinge holes in cabinetry and furniture. Made from high-quality ultra-hard alloy, this tool ensures clean cuts and efficient chip removal. The jig features a unique locator that simplifies the process of finding center points for all brands of hinges and mounting plates, making it user-friendly even for those without professional experience.

Technical specifications

Bore diameter: 35mm

Material: ABS plastic

Size: 77mm x 66mm

Usage

Compatible with various drills including drill press, pistol drill, bench drill, vertical drill, hand-held electric drill, stand motor drill, and ribbon-type magnetism drill.

Ideal for DIY carpentry projects or professional use.

Installation

Determine the position of the hinge cup and secure the jig on the board.

Drill the hinge cup hole using the Forstner drill bit.

Align the center line on the other board with the jig and drill the hinge base positioning hole.

Install the hinges once the holes are drilled.

Other information

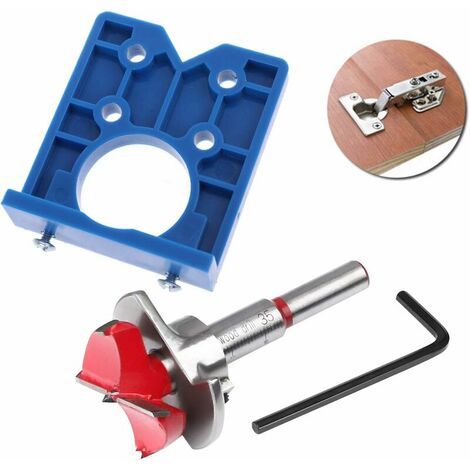

Package includes: 1x 35mm hinge drilling jig + Forstner drill bit set.

Features

Brand
ROLEADER
Diameter
35 mm
Compatible machine
Drill
Suitable for
Wood
Material to Work On
Wood
Material
Acrylonitrile butadiene styrene (ABS)
Weight
500 g
Pcs per pack
1
Bit type
Wick
Sold as a set
Yes
ManoMano Reference
ME72363077
MMID
622128630876
Product code
DRF4067A0410D
EAN
9423338391458

Customer reviews

1,0

/ 2 Reviews

Reviews verified by ManoMano

MManoMano Customer

Published on 03/12/2022, France

One would think that for a small tool of this kind, the use is easy. This is not the case: - 2 self-drilling (or self-drilling) screws are provided, but what is their use? - the tool has a graduated part on its axis from 10 to 30 mm (31 mm in reality because there is 21 mm between the 10 and the 30). The drill guide has 5 all: one of 35 mm and 4 holes of 5 mm separated by 30 mm in width and 22 mm in "height". Why 4? To install my hinge, I operated by feeling and a depth of 12 mm corresponds to 13 mm on the graduated axis. Knowing that my door is 16 mm and that the tip of the tool is 3 mm, I was afraid to see a small hole appear on the facade. I bought this tool from Mano Mano because I didn't want a product from China. It missed !
