Louvered pergola aluminium 4 x 3m and a 4m blind anthracite - Triomphe

Product advantages:
Protection from the sun
Natural ventilation, adjustable slats
Awning for protection from the sun and bad weather

Enjoy pleasant, convivial moments in your garden thanks to the Triomphe bioclimatic pergola. In winter, you will be protected from the rain and in summer, you can enjoy its shade and coolness. It is fixed to the ground, so it is a permanent system. No need to store it away, you can enjoy it all year round.

Elegant, it will fit perfectly into your outdoor space. It will find its place in your garden, on your terrace above a garden table or by the pool. It can also shelter a spa. A crank handle allows you to choose the angle of the tilting slats. You can adjust the light flow and ventilation.

Add extra comfort to your bioclimatic pergola with this vertical aluminium blind that protects you from the sun and bad weather. In case of wind or rain, simply lower it manually. Its height can be adjusted to suit your needs and is not pre-set. Well designed, it also protects you from UV rays in summer. It also protects you from prying eyes without being completely opaque. This awning is made from high-quality materials, with aluminium side panels and textilene fabric. For added safety, we recommend raising the blind in strong winds or when you are away.

Additional information
Although it offers protection from the rain, this pergola is not completely waterproof.
This pergola must be installed on level ground.
It is advisable to keep the drainage channels open in case of snowfall.

Dimensions and characteristics:
General:
Type: Free-standing bioclimatic pergola
Motorised: No
Shape: Rectangular
Colour: Anthracite (RAL 19-0201) - White (RAL000C)

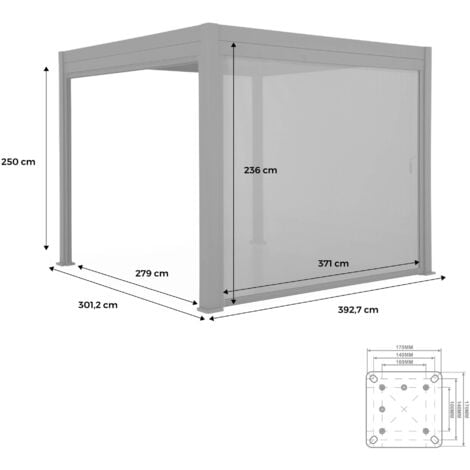

Size and dimensions:
Overall external dimensions: L 392 x D 301 x H 257 cm
Size: 3x4m
Length: 3m
Width: 4m
Height at ridge: 2.57m
Entrance height: 2.36m
Height with slats closed: 2.50m
Floor area: 12m²
Interior floor height: 10.35m²
Post dimensions: L11 x D11 x H250 cm
Aluminium thickness: 1.4 mm / 1.5 mm
Slats dimensions: L 294 x D 17 x H 3 cm
Slats orientation: 0° - 90°
Number of slats: 25
Weight: 189.6 kg

Materials
Main material: Aluminium
Structure material: Aluminium
Slats material: Galvanised steel
Screws material: Stainless steel
Roof material: Galvanised steel and aluminium
Posts material: Aluminium
Base material: Aluminium
Treatment: Powder coating

Product description:
Fixed to the ground: Yes (anchoring kit not included)
Crank handle: Yes
Wind resistance: 74 km/h
Load resistance: 66.4 kg/m²
Maximum permissible roof load: 796.8 kg/m²
UV resistance: Yes
Anti-rust/corrosion: Yes
Water drainage system: Through drainage inside the posts
Waterproofing: Roof and slats
Accessory included: 1 x 4m Triomphe blind
Material: Textilene
Density: 470 g/m²
Louvre dimensions: L 370 x 236 cm
Weight: 37 kg
Assembly time: 3 hours/4 people
Number of packages: 5
Use: Outdoor
Usage: Domestic use only
