5 Ton X 6 Metre Screw Type Gear Trolley - Travel Girder Adjuster

Name: 5 Ton X 6 Metre Screw Type Gear Trolley - Travel Girder Adjuster
Brand: SECUREFIX DIRECT
SKU: SFSTGT5
Price: 250 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

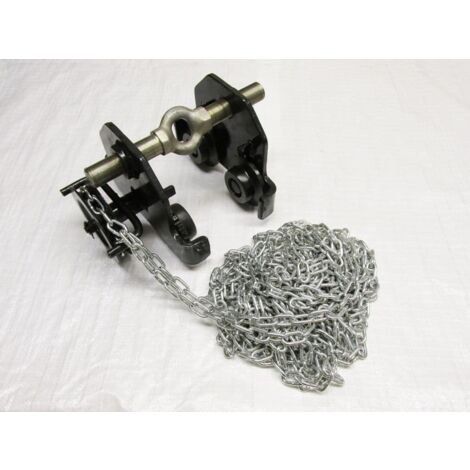

5 Ton Screw Type Geared Trolley with a 6 Metre Hand Chain is designed to be attached to steel beams, serving as an adjustable lifting point for chain blocks, hoists, and various lifting tackle. This trolley allows for easy and precise movement due to its hand chain and gear combination. The screw type adjuster facilitates efficient adjustments to accommodate different beam sizes as needed.

Technical specifications

Product Code: SFSTGT5

Safe Working Load (S.W.L): 5 Ton

Beam Size Range: 90-220 mm

Length: 390 mm

Width: 370 mm

Height: 325 mm

Hand Chain Length: 5.8 m

Lifting Height: 6 m

Other information

Supplied with Test Certificate (sent via email)

Conforms to: BS EN 13157: 2004+A1: 2009

Features

Brand
SECUREFIX DIRECT
Maximum load
5000 kg
Height
32.5 cm
Material
Two-material
power supply
Manual
ManoMano Reference
ME27141125
MMID
877113257774
Product code
SFSTGT5
EAN
0600988508972

Advice from

Hoist buying guide

A hoist can be manual, electric, pneumatic or hydraulic. With the manual models, the hoist is composed chains and can include a lever. It allows to lift loads of 500 kg, 2 tons, 3 t or 5 t. The electric hoist offers more comfort and is often move on a trolley. It can efficiently lift and lower loads with precise accuracy.
