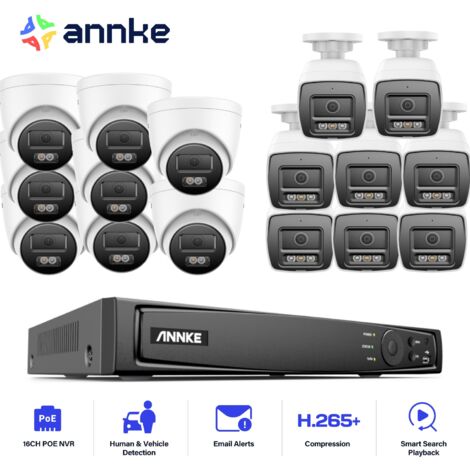

ANNKE 12MP Kit Wired CCTV System, 16CH NVR with 16X 12MP PoE Cameras, Color Night Vision, APP/PC Remote, 8 Towers + 8 Bullets

Name: ANNKE 12MP Kit Wired CCTV System, 16CH NVR with 16X 12MP PoE Cameras, Color Night Vision, APP/PC Remote, 8 Towers + 8 Bullets
Brand: ANNKE
SKU: AE-N46PCK0-98DD-98DN
Price: 1573.99 GBP
Availability: InStock

~~£4,721.97~~

Sold by ANNKE Security kit

Product information

Description

General description

ANNKE's 12MP Kit Wired CCTV System is a comprehensive security solution featuring a 16-channel NVR and 16 high-definition 12MP PoE cameras. This advanced system provides exceptional image clarity and color night vision, ensuring that your property is monitored effectively both day and night.

Technical specifications

Camera Type: IP Camera

Image Sensor: 1/2.7" Progressive Scan CMOS

Max Resolution: 4096 x 3072 (12MP)

Main Stream: 50 Hz: 10 fps@4096*3072, 12.5 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720); 60 Hz: 10 fps@4096*3072, 15 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720)

Substream: 50 Hz: 12.5 fps (1280*720, 640*480, 640*360); 60 Hz: 15 fps (1280*720, 640*480, 640*360)

Video Compression: H.265+/H.265/H.264+/H.264 (Main stream); H.265/H.264/MJPEG (Sub-stream)

Video Bitrate: 32 Kbps - 16 Mbps

Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Input: Built-in Microphone

Lens: 2.8 mm

Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

Angle of View: Horizontal FOV 113°, Vertical FOV 62°, Diagonal FOV 134°

Supplement Light Type: Smart Dual-Light, IR, White Light

Supplement Light Range: Up to 30 m

Motion Detection: Supports Human & Vehicle detection

Image Enhancement: BLC, HLC, 3D DNR

Wide Dynamic Range: 120 dB WDR

Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP

API: Open Network Video Interface Version 19.12 (Profile S, Profile T, Profile G)

Region of Interest (ROI): 1 fixed region for main stream

Privacy Mask: 4 programmable polygon privacy masks

General Function: Rotate mode, mirror, password protection, remote access

Ethernet: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Housing: Metal & Plastic

Color: White & Black

Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB

Hardware Reset: Yes

Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W

Operating Temperature: -22 °F – 140 °F/-30 °C – 60 °C

Indoor/Outdoor Use: Indoor/Outdoor

Interface Protection: IP67

Dimension (L X W X H): 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")

Weight: 0.6 lb./285 g

Other information

Features

Brand
ANNKE
Width
6.6 cm
Height
6.91 cm
Depth
17.8 cm
Voltage
12 V
