General description

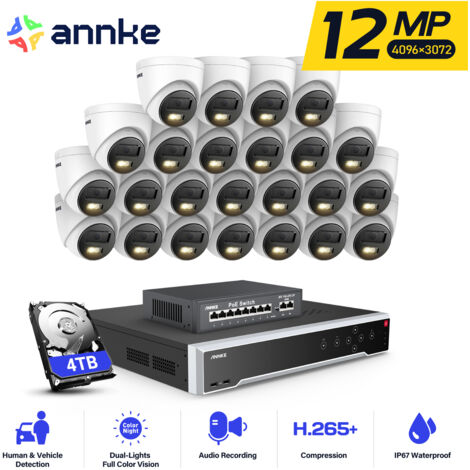

The ANNKE 12MP Outdoor Security Camera Kit includes a 32-channel NVR and 24 smart dual light night vision cameras. This advanced surveillance system offers high-resolution recording, intelligent motion detection, and remote access via an app or PC, ensuring comprehensive security for your property.Technical specifications
- Camera Resolution: 12 MP
- NVR Input: 32 IP camera channels (total incoming bandwidth of 256 Mbps)
- Video Compression: H.265+/H.265/H.264+/H.264/MPEG4
- Video Output: HDMI up to 4K (3840 × 2160), VGA up to 1080p
- Max Recording Resolution: Up to 12 MP
- Max Playback Resolution: Up to 12 MP
- Max Playback Channels: 16 channels
- Max HDD Capacity: Up to 12 TB per HDD (48 TB total)
- Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating Temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Dimensions (Camera): Ø110 mm × 93 mm (Ø4.33" × 3.66")
- Weight (Camera): 0.6 lb (285 g)
- Dimensions (NVR): 17.5" x 15.7" x 2.8" (445 mm x 400 mm x 71 mm)
- Weight (NVR): ≤11 lbs (5 kg)
Compatibility and accessories
- Supports up to 512 GB microSD/SDHC/SDXC storage
- 4 SATA interfaces for hard drives
- 16 PoE ports (IEEE802.3at/af)
Installation
- Easy installation with Power over Ethernet (PoE) capability
- Includes 4 SATA interfaces for hard drive installation
Usage
- Remote access via mobile app or PC
- Real-time audio monitoring with built-in microphone
- Smart motion detection with human and vehicle recognition
