General description

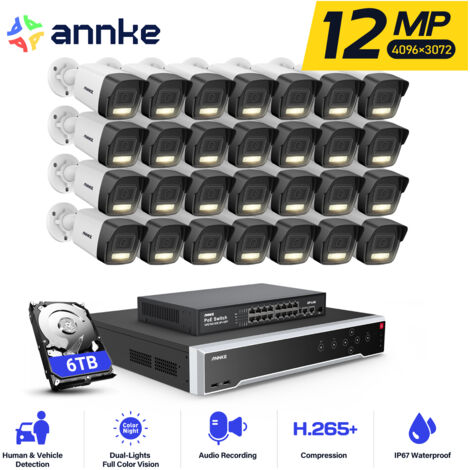

The ANNKE 12MP Outdoor Video Surveillance Kit includes a 32-channel NVR and 28 smart dual light cameras, providing exceptional night vision capabilities and remote monitoring through an app or PC. This comprehensive surveillance solution is designed for both indoor and outdoor use, ensuring robust security for your property.Technical specifications
- NVR Resolution: 12 MP
- Camera Resolution: 4096 × 3072 (12 MP)
- Video Compression: H.265+/H.265/H.264+/H.264/MPEG4
- Video Output: HDMI up to 4K (3840 × 2160), VGA up to 1080p
- Incoming/Outgoing Bandwidth: 256 Mbps
- Max Recording Resolution: Up to 12 MP
- Max Playback Resolution: Up to 12 MP
- Max Playback Channels: 16 Channels
- Storage: 4 SATA interfaces, up to 12 TB capacity for each HDD (48 TB total)
- Operating Power: DC 12 V ± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating Temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Camera Dimensions: 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
- Camera Weight: 0.6 lb (285 g)
- NVR Dimensions: 445 mm × 400 mm × 71 mm (17.5" × 15.7" × 2.8")
- NVR Weight: ≤11 lbs (5 kg)
Compatibility and accessories
- Supports up to 32 IP cameras
- Compatible with PoE (Power over Ethernet)
- Built-in microSD/SDHC/SDXC slot, supports up to 512 GB
Installation
- Easy installation with PoE technology for simplified wiring
- Mounting options for both indoor and outdoor settings
Usage
- Remote monitoring via mobile app or PC
- Real-time audio recording with built-in microphone
- Smart motion detection for humans and vehicles
- Adjustable audio recording settings
