General description

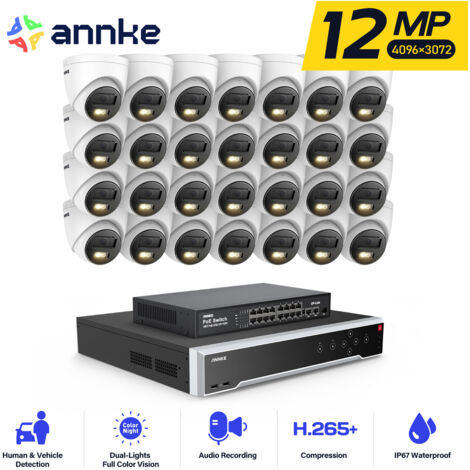

The ANNKE 12MP Outdoor Video Surveillance Kit includes a 32-channel NVR and 28 smart dual light cameras, providing exceptional night vision and motion detection capabilities. This comprehensive surveillance solution is designed for both indoor and outdoor use, ensuring high-quality monitoring in various environments.Technical specifications
- NVR: 12 MP recording resolution
- Camera: 12 MP turret network camera with 2.8 mm lens
- Video output: HDMI 4K (3840 × 2160), VGA up to 1080p
- Incoming bandwidth: 256 Mbps
- Max recording resolution: Up to 12 MP
- Max playback resolution: Up to 12 MP
- Max playback capacity: 2CH @12MP (20 fps), 4CH @8MP (25 fps)
- Storage: Supports up to 12 TB HDD per drive (48 TB total) with 4 SATA interfaces
- Operating power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Camera dimensions: Ø110 mm × 93 mm (Ø4.33" × 3.66")
- Camera weight: 0.6 lb. (285 g)
- NVR dimensions: 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm)
- NVR weight: ≤11 lbs. (5 kg)
Compatibility and accessories
- Supports up to 32 IP cameras
- Compatible with PoE (Power over Ethernet)
- Built-in microSD/SDHC/SDXC slot, up to 512 GB
Installation
- Easy installation with PoE support for simplified wiring
- Mounting options for both indoor and outdoor settings
Usage
- Real-time monitoring via APP/PC remote access
- Advanced motion detection with human and vehicle recognition
- Audio recording with built-in microphone
- Smart dual-light technology for enhanced night vision
