ANNKE 12MP Outdoor Video Surveillance Kit 32CH NVR 32×Smart Cameras Dual Light Night Vision, Email Alert Motion Detection Surveillance Camera APP/PC Remote

Name: ANNKE 12MP Outdoor Video Surveillance Kit 32CH NVR 32×Smart Cameras Dual Light Night Vision, Email Alert Motion Detection Surveillance Camera APP/PC Remote
Brand: ANNKE
SKU: AE-N931BB0-91DN*32
Price: 3665.99 GBP
Availability: InStock

~~£10,997.97~~

Sold by ANNKE Security kit

Product information

Description

General description

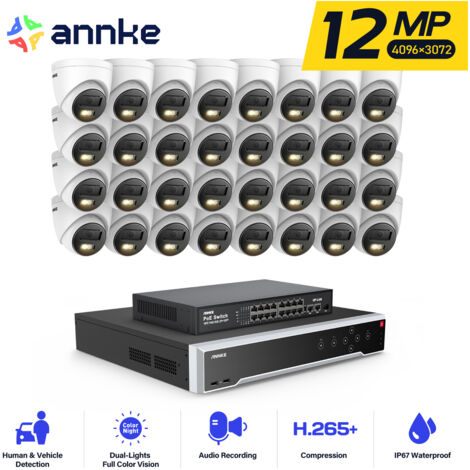

The ANNKE 12MP Outdoor Video Surveillance Kit includes a 32-channel NVR and 32 smart cameras equipped with dual light night vision. This advanced surveillance system is designed to provide high-resolution video recording and real-time monitoring, ensuring comprehensive security for your property.

Technical specifications

NVR:

Recording resolution: 12 MP

Camera inputs: 32 IP camera inputs (total incoming bandwidth of 256 Mbps)

Video compression: H.265+/H.265/H.264+/H.264/MPEG4

Video output: HDMI 4K (3840 × 2160), independent HDMI and VGA outputs

Hard drive interfaces: 4 SATA interfaces

Smart search and playback features

Alarm and audio I/O

Long-distance network transmission: 100 to 300 m via PoE

Camera:

Image sensor: 1/2.7" Progressive Scan CMOS

Max resolution: 4096*3072 (12MP)

Lens: 2.8 mm

Min. illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Field of view: Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°

Supplement light type: Smart Dual-Light, IR, White Light

Supplement light range: Up to 30 m

Operating temperature: -22 °F to 140 °F (-30 °C to 60 °C)

Dimensions (Camera): Ø110 mm × 93 mm (Ø4.33" × 3.66")

Weight (Camera): 0.6 lb. (285 g)

NVR dimensions: 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm)

Weight (NVR): ≤11 lbs. (5 kg)

Compatibility and accessories

Supports up to 12 TB capacity for each HDD (48 TB total)

Built-in microSD/SDHC/SDXC slot, up to 512 GB

16 PoE ports (IEEE802.3at/af)

Installation

Installation involves connecting the cameras to the NVR using PoE for power and data transmission. Ensure the cameras are positioned to cover the desired surveillance areas and connect the NVR to a monitor for viewing.

Usage

This surveillance kit is ideal for outdoor security monitoring, providing clear video footage both day and night. The advanced motion detection feature minimizes false alerts by focusing on human and vehicle detection.
