General description

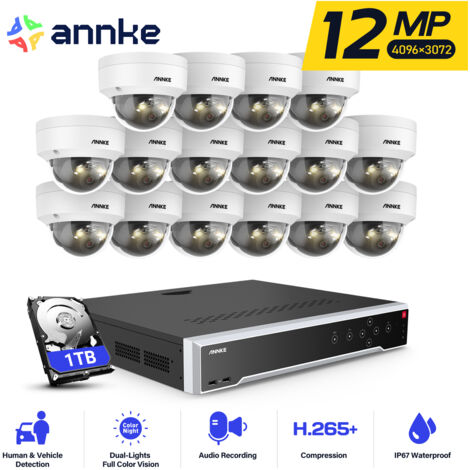

The ANNKE 12MP Wired Video Surveillance Kit includes a 32-channel NVR and 16 smart dual light cameras, designed for comprehensive outdoor surveillance. With advanced features such as night vision, email alerts, and motion detection, this system ensures high-quality security monitoring for your property.Technical specifications
- NVR: 12 MP recording resolution
- Camera: 12MP dome network camera with 2.8 mm lens
- Video output: HDMI 4K (3840 × 2160), VGA
- Incoming bandwidth: 256 Mbps
- Max recording resolution: Up to 12MP
- Max playback resolution: Up to 12MP
- Max playback capacity: 2CH @12MP (20 fps), 4CH @8MP (25 fps)
- Storage: 4 SATA interfaces, up to 12 TB capacity for each HDD (48 TB total)
- Operating power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Camera dimensions: Ø110 mm × 93 mm (Ø4.33" × 3.66")
- Camera weight: 0.6 lb. (285 g)
- NVR dimensions: 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm)
- NVR weight: ≤11 lbs. (5 kg)
Compatibility and accessories
- Supports up to 32 IP cameras (including 16 PoE channels)
- Compatible with H.265+/H.265/H.264+/H.264/MPEG4 video compression formats
- Includes 1TB hard drive for storage
Installation
- Easy installation with PoE support for simplified wiring
- Mounting hardware included for camera installation
Usage
- Ideal for outdoor surveillance with IP67 weather resistance
- Real-time audio monitoring with built-in microphone
- Advanced motion detection to minimize false alerts
Other information
