General description

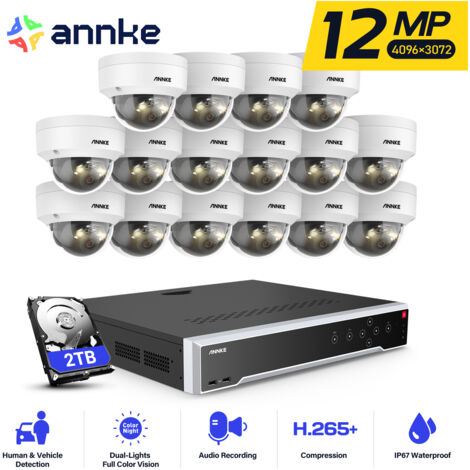

ANNKE 12MP Wired Video Surveillance Kit includes a 32-channel NVR and 16 smart dual-light cameras, providing advanced night vision capabilities, email alerts, and motion detection. This comprehensive surveillance solution is designed for both indoor and outdoor use, ensuring high-quality monitoring and security for your property.Technical specifications
- Camera Resolution: 12 MP
- NVR Input: 32 IP camera channels (256 Mbps total bandwidth)
- Video Output: HDMI 4K (3840 × 2160), VGA
- Video Compression: H.265+/H.265/H.264+/H.264/MPEG4
- Max Recording Resolution: Up to 12MP
- Max Playback Resolution: Up to 12MP
- Max Playback Channels: 16 channels
- Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating Temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Camera Dimensions: Ø110 mm × 93 mm (Ø4.33" × 3.66")
- Camera Weight: 0.6 lb. (285 g)
- NVR Dimensions: 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm)
- NVR Weight: ≤11 lbs. (5 kg)
Compatibility and accessories
- Supports up to 12 TB HDD capacity for each HDD (48 TB total)
- 4 SATA interfaces for hard drives
- 16 PoE ports (IEEE802.3at/af)
Installation
- Easy installation with PoE support for simplified wiring
- Includes 4 SATA interfaces for hard drive installation
Usage
- Ideal for home and business security monitoring
- Real-time audio recording with built-in microphone
- Smart motion detection to reduce false alerts from non-human sources
