General description

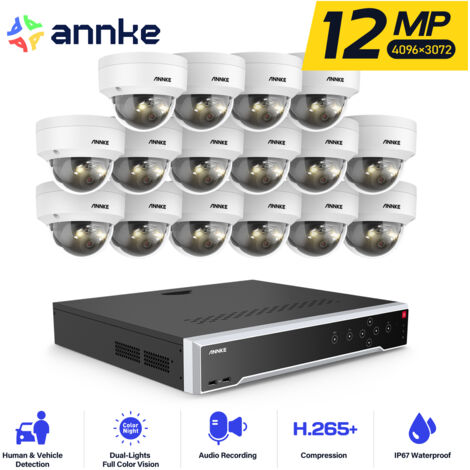

ANNKE 12MP Wired Video Surveillance Kit includes a 32-channel NVR and 16 smart dual light cameras, providing high-quality night vision and advanced motion detection capabilities. This comprehensive surveillance solution is designed for both indoor and outdoor use, ensuring robust security for your property.Technical specifications
- NVR: 12 MP recording resolution
- Camera Input: 32 channels (including 16 PoE channels)
- Video Output: HDMI up to 4K (3840 × 2160), VGA up to 1080p
- Incoming Bandwidth: 256 Mbps
- Max Recording Resolution: Up to 12MP
- Max Playback Resolution: Up to 12MP
- Max Playback Capacity: 2CH @12MP (20 fps), 4CH @8MP (25 fps), 8CH @4MP (30 fps), 16CH @1080p (30 fps)
- Video Compression: H.265+/H.265/H.264+/H.264/MPEG4
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Camera Lens: 2.8 mm
- Min. Illumination: Color: 0.005 Lux, B/W: 0 Lux with IR
- Angle of View: Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°
- Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating Temperature: -22 °F – 140 °F / -30 °C – 60 °C
- Dimensions (Camera): Ø110 mm × 93 mm (Ø4.33" × 3.66")
- Weight (Camera): 0.6 lb. / 285 g
- Dimensions (NVR): 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm)
- Weight (NVR): ≤11 lbs. (5 kg)
Compatibility and accessories
- Supports up to 12 TB capacity for each HDD (48 TB total) with 4 SATA interfaces
- Includes 16 PoE ports (IEEE802.3at/af)
- Compatible with Open Network Video Interface Version 19.12 (Profile S, Profile T, Profile G)
Installation
- Easy installation with PoE support for simplified cabling
- Metal and plastic housing for durability
Usage
- Real-time monitoring via APP/PC
- Advanced motion detection with human and vehicle recognition
- Audio recording with built-in microphone
- Remote access and playback capabilities
