General description

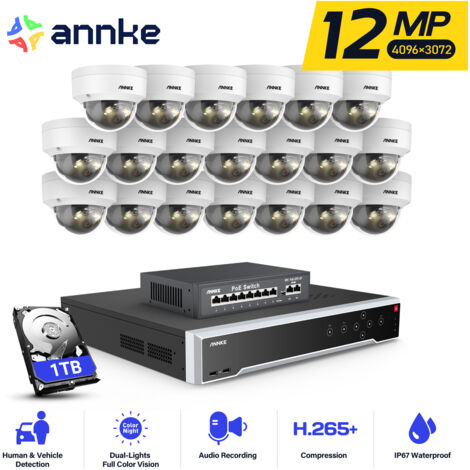

ANNKE 12MP Wired Video Surveillance Kit includes a 32-channel NVR and 20 smart dual light cameras, providing advanced night vision capabilities, email alerts, and motion detection. This comprehensive surveillance solution is designed for both indoor and outdoor use, ensuring high-quality monitoring and security for your property.Technical specifications
- Camera Resolution: 12 MP
- NVR Input: 32 IP camera channels (total incoming bandwidth of 256 Mbps)
- Video Compression: H.265+/H.265/H.264+/H.264/MPEG4
- Video Output: HDMI up to 4K (3840 × 2160), VGA up to 1080p
- Max Recording Resolution: Up to 12MP
- Max Playback Resolution: Up to 12MP
- Max Playback Capacity: 2CH @12MP (20 fps), 4CH @8MP (25 fps), 8CH @4MP (30 fps), 16CH @1080p (30 fps)
- Audio Input: Built-in microphone
- Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating Temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Camera Dimensions: Ø110 mm × 93 mm (Ø4.33" × 3.66")
- Camera Weight: 0.6 lb (285 g)
- NVR Dimensions: 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm)
- NVR Weight: ≤11 lbs (5 kg)
Compatibility and accessories
- Supports up to 12 TB capacity for each HDD (48 TB total) with 4 SATA interfaces
- Compatible with ONVIF protocol
- Includes 16 PoE ports (IEEE802.3at/af)
Installation
Installation involves connecting the cameras to the NVR using PoE for power and data transmission, ensuring a streamlined setup without the need for additional power sources.Usage
This surveillance kit is ideal for monitoring homes, offices, and outdoor areas. Users can access live feeds and recorded footage remotely via an app or PC, enabling real-time surveillance and alerts for motion detection.Other information
