General description

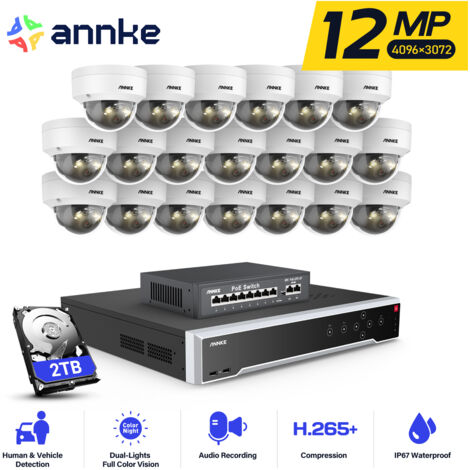

The ANNKE 12MP Wired Video Surveillance Kit includes a 32-channel NVR and 20 smart dual light cameras, providing high-definition video surveillance with advanced features such as night vision, email alerts, and motion detection. This comprehensive system is designed for both indoor and outdoor use, ensuring robust security for your property.Technical specifications
- NVR: 12 MP recording resolution
- Camera: 12MP dome network camera with 2.8 mm lens
- Video output: HDMI up to 4K (3840 × 2160), VGA up to 1080p
- Incoming bandwidth: 256 Mbps
- Max recording resolution: Up to 12MP
- Max playback resolution: Up to 12MP
- Max playback channels: 16 channels
- Max HDD capacity: Up to 12 TB for each HDD (48 TB total)
- Operating power: NVR 100-240V, Camera DC 12V± 25%
- Operating temperature: Camera -22 °F to 140 °F (-30 °C to 60 °C), NVR 14 °F to 131 °F (-10 °C to +55 °C)
- Camera dimensions: Ø110 mm × 93 mm (Ø4.33" × 3.66")
- Camera weight: 0.6 lb (285 g)
- NVR dimensions: 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm)
- NVR weight: ≤11 lbs (5 kg)
Compatibility and accessories
- Supports up to 32 IP cameras
- 4 SATA interfaces for hard drives
- Compatible with PoE (Power over Ethernet)
Installation
- Easy installation with PoE support for simplified wiring
- Mounting hardware included for camera installation
Usage
- Remote access via APP/PC for real-time monitoring
- Motion detection with human and vehicle recognition to reduce false alerts
- Audio recording with built-in microphone for enhanced security
Other information
