General description

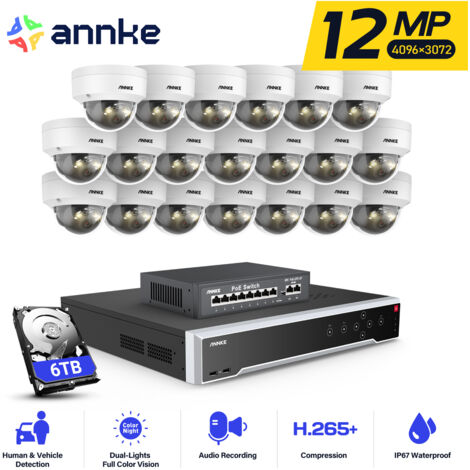

ANNKE 12MP Wired Video Surveillance Kit includes a 32-channel NVR and 20 smart dual light cameras, providing high-quality night vision, email alerts, and motion detection. This comprehensive surveillance solution is designed for both indoor and outdoor use, ensuring robust security for your property.Technical specifications
- Camera Resolution: 12 MP
- NVR Input: 32 IP camera channels (total incoming bandwidth of 256 Mbps)
- Video Output: HDMI 4K (3840 × 2160), VGA
- Video Compression: H.265+/H.265/H.264+/H.264/MPEG4
- Max Recording Resolution: Up to 12MP
- Max Playback Resolution: Up to 12MP
- Max Playback Channel: 16 channels
- Storage: 4 SATA interfaces, up to 12 TB capacity for each HDD (48 TB total)
- Camera Lens: 2.8 mm
- Minimum Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating Temperature: -22 °F – 140 °F (-30 °C – 60 °C)
- Camera Dimensions: Ø110 mm × 93 mm (Ø4.33" × 3.66")
- Camera Weight: 0.6 lb. (285 g)
- NVR Dimensions: 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm)
- NVR Weight: ≤11 lbs. (5 kg)
Compatibility and accessories
- Supports up to 512 GB microSD/SDHC/SDXC for camera storage
- Compatible with ONVIF protocol
- Includes 16 PoE ports for easy camera connectivity
Installation
- Easy installation with Power over Ethernet (PoE) support
- Requires mounting of cameras at desired locations
- NVR setup involves connecting to a monitor via HDMI or VGA
Usage
- Ideal for home and business security
- Real-time monitoring via APP/PC
- Motion detection with human and vehicle recognition to reduce false alerts
- Audio recording capability with built-in microphone
