General description

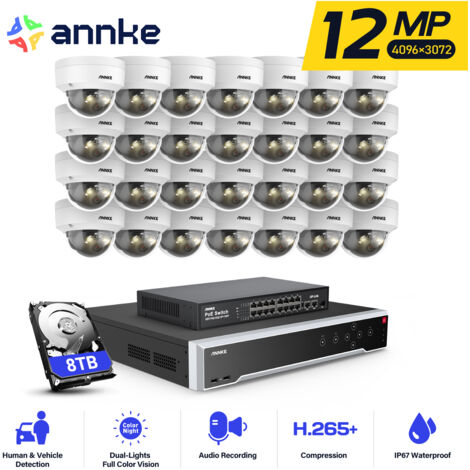

The ANNKE 12MP Wired Video Surveillance Kit is a comprehensive security solution featuring a 32-channel NVR and 28 smart dual light cameras. This system is designed for outdoor surveillance, offering advanced night vision capabilities, motion detection, and remote access via an app or PC. With an 8TB hard drive, it ensures ample storage for high-resolution recordings.Technical specifications
- Camera Resolution: 12 MP
- NVR Input: 32 IP camera channels (256 Mbps total incoming bandwidth)
- Video Output: HDMI 4K (3840 × 2160), VGA
- Video Compression: H.265+/H.265/H.264+/H.264/MPEG4
- Max Recording Resolution: Up to 12MP
- Max Playback Resolution: Up to 12MP
- Max Playback Channel: 16 channels
- Max HDD Capacity: 12 TB per HDD (up to 48 TB total)
- Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating Temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Camera Dimensions: Ø110 mm × 93 mm (Ø4.33" × 3.66")
- Camera Weight: 0.6 lb (285 g)
- NVR Dimensions: 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm)
- NVR Weight: ≤11 lbs (5 kg)
Compatibility and accessories
- Supports up to 512 GB microSD/SDHC/SDXC storage for each camera
- Includes 4 SATA interfaces for hard drives
- 16 PoE ports for easy camera connectivity
Installation
- Easy installation with PoE technology, allowing for long-distance transmission (100 to 300 m)
- Includes alarm input/output for enhanced security integration
Usage
- Remote access via app or PC for real-time monitoring
- Advanced motion detection with human and vehicle recognition to minimize false alerts
- Audio recording capability with built-in microphone for enhanced security
